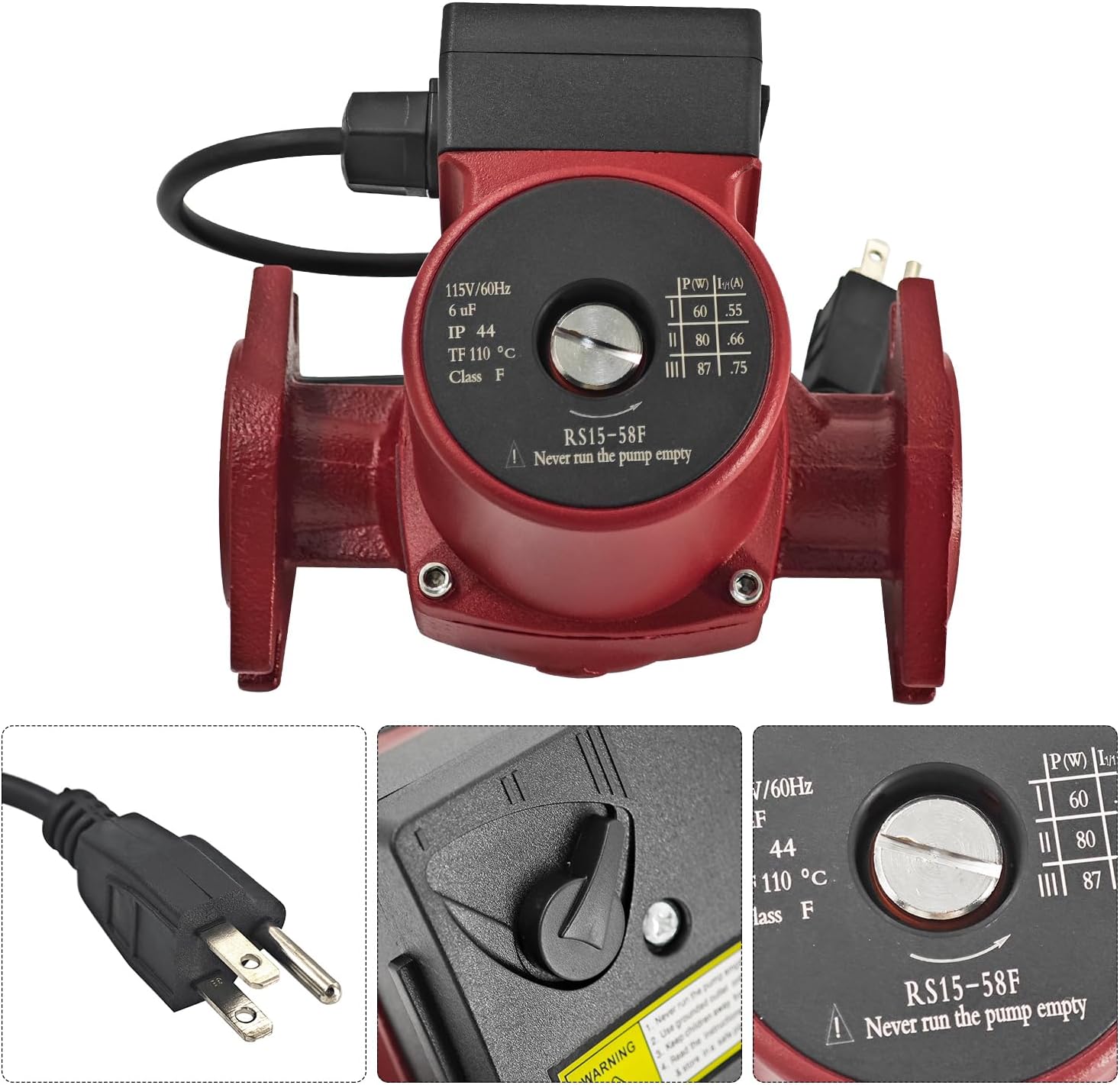

115V 17GPM Three-Speed Circulator Pump Replacement for Grundfos UPS15-58FC (UPS 15-58 FC) Nonsubmersible Circulation Pump 1/25HP Replace# 59896341
Product details
| Management number | 210144936 | Release Date | 2026/04/02 | List Price | $37.20 | Model Number | 210144936 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
【Compatible With】 Replacement for Grundfos UPS15-58FC (UPS 15-58 FC); Replacement Number: 59896341;Suitable for commercial heating and air-conditioning systems and is also used for central and district heating systems.【Package List & Specification】 Package Includes:1 pcs x 115V 17GPM Three-Speed Circulator Pump;1 set x Mounting Accessories; Materials：Pump housing: Cast iron (EN 1561 EN-GJL-200)；Impeller: Composite (PES+30% GF)；Shaft: Ceramic；Bearing: Carbon Axial； Technical:Speed no: 3Rated flow: 1.93 m³/hMax flow: 3.9 m³/hFlow Range: 0-17 GPM (Gallons Per Minute);Rated head: 3.19 mMax head: 5.9 mHead Range: 0-19.5 ft;Horse Power: 1/25HP Electrical dataPhase: 1;Rated Voltage: 115V;Amperage at Speed 1 : 0.55A;Amperage at Speed 2 : 0.66A;Amperage at Speed 3 : 0.75A;Watts at Speed 1 : 60W;Watts at Speed 2 : 80W;Watts at Speed 3 : 87W;Mains frequency: 60 Hz;Capacitor size - run: 10 µF/180 VNumber of poles: 2Insulation class (IEC 85): F LiquidPumped liquid: Water;Liquid temperature range: 2~110 °C;Selected liquid temperature: 60 °CDensity: 983.2 kg/m³【Installation】Max ambient temperature: 40 °C;Amb. max at 80 dgr C liquid: 80 °C;Max operating pressure: 10 bar (145 Psi);Type of connection: 2-BOLT FLANGE (C.I. Flange);Pipe connection: 2-BOLT FLANGE;Pressure rating for connection: PN 10;Port-to-port length: 166 mm;【Excellent Performance】Built-in motor protection for longer life and better performance.Whisper-quiet operation for sound sensitive installations.【Buy with Confidence】This 115V 3-Speed Circulator Pump is factory-proven. We will be responsible for dealing with them if the product has any quality problems within 1 year
- 【Compatible With】 Replacement for Grundfos UPS15-58FC (UPS 15-58 FC); Replacement Number: 59896341; Suitable for commercial heating and air-conditioning systems and is also used for central and district heating systems
- 【Package List & Specification】 Package Includes: 1 pcs x 115V 17GPM Three-Speed Circulator Pump; 1 set x Mounting Accessories; Technical: Speed no: 3 Rated flow: 1.93 m³/h Max flow: 3.9 m³/h Flow Range: 0-17 GPM (Gallons Per Minute); Rated head: 3.19 m Max head: 5.9 m Head Range: 0-19.5 ft; Horse Power: 1/25HP
- 【Installation】 Max ambient temperature: 40 °C; Amb. max at 80 dgr C liquid: 80 °C; Max operating pressure: 10 bar (145 Psi); Type of connection: 2-BOLT FLANGE (C.I. Flange); Pipe connection: 2-BOLT FLANGE; Pressure rating for connection: PN 10; Port-to-port length: 166 mm
- 【Excellent Performance】 Built-in motor protection for longer life and better performance. Whisper-quiet operation for sound sensitive installations
- 【Buy with Confidence】 This 115V 3-Speed Circulator Pump is factory-proven. We will be responsible for dealing with them if the product has any quality problems within 1 year
| Color | Red |
|---|---|
| Voltage | 115 Volts |
| Flow Rate | 3.9 Cubic Meters Per Hour |
| Brand Name | Buxatina |
| Unit Count | 17 Count |
| Item Weight | 9 Pounds |
| Manufacturer | Buxatina |
| Model Number | Buxatina UPS15-58FC, 59896341 |
| Power Source | AC |
| Material Type | Cast Iron |
| Product Style | 115V 17GPM Three-Speed Circulator Pump |
| Included Components | 115V 17GPM Three-Speed Circulator Pump x 1 pcs; |
| Maximum Lifting Height | 5.9 Meters |
| Item Dimensions L x W x H | 8"L x 8"W x 8"H |
