5/10/20pcs PM Pneumatic compressor Air Hose Quick Connector Kit Tube Pipe Straight Bulkhead Fitting Tubing Adapter 4 6 8 12 8mm (Color : NUT, Size : 5pcs)
Product details
| Management number | 210887880 | Release Date | 2026/04/04 | List Price | $13.38 | Model Number | 210887880 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

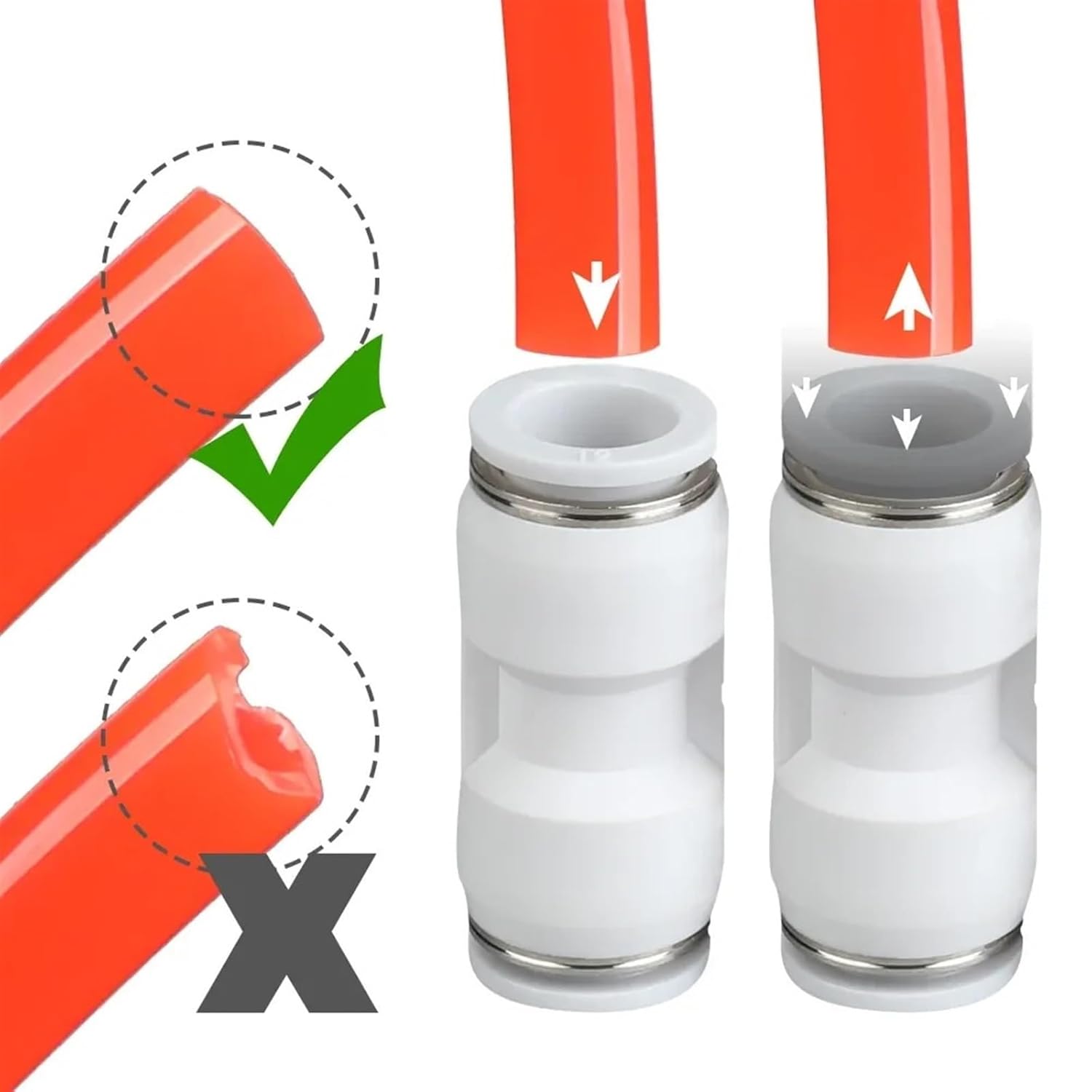

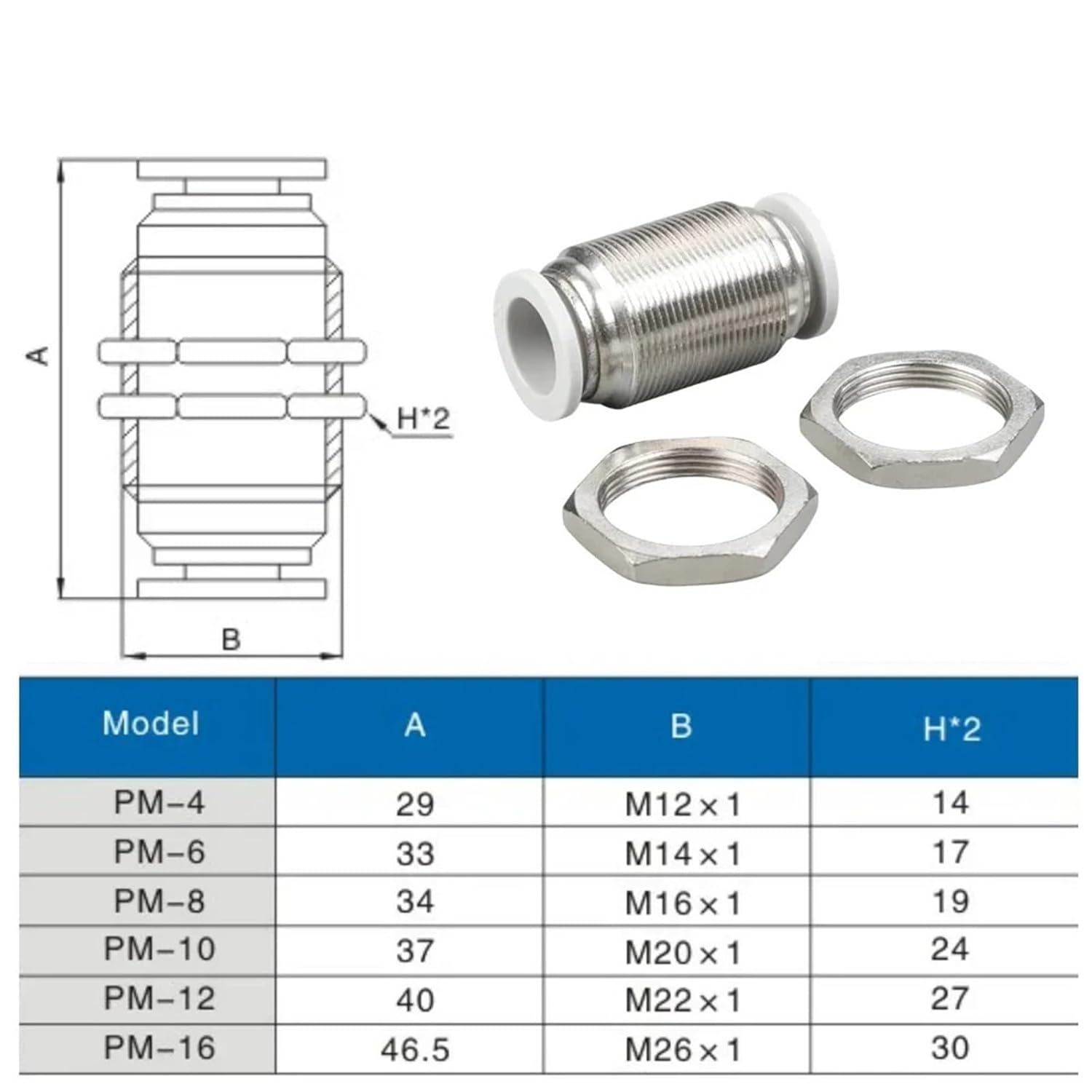

Tee Fittings5/10/20pcs PM Pneumatic compresor Air PU PA Hose Quick Connector Kit Water Tube Fittings Pipe Connectors Straight Bulkhead Fitting Tubing Adapter 4 6 8 10 12 4mm 6mm 8mm 10mm 12mmSpecification:Item No.: PMConnection Way: One-Touch Push in Quick ConnectionType: Hose to HoseDesign: BulkheadMaterial: Nitrile Rubber, Plasticn , MetalFluid Type: Clean Air, Vacuum, No Toxic GasApplicable Hose: SolfNylon, PolyurethaneNormal Operating Pressure: 0~10kgf/cm² (0~1.0MPa / 0~1.0bar)Max.Operating Pressure: 15.0 bar(1.5MPa)Negative Pressure: -750mmhg (10Torr)Ambient And Fluid Temperature: 0~60 (140)Hose Size Options: OD: 4-4mm, 6-6mm, 8-8mm, 10-10mm, 12-12mmInstallation Instructions:InstallationGrasp the tubing and slowly push it into the fitting until it comes to stop. The tubing will be locked by the spring gasket.RemovePush the release button to open the spring gasket so that the tubing can be released.Cautions:1. Cleaning: Clean the piping before connection to remove debris.2. Tubing Cut: Ensure a perpendicular cut without scratches on the tubing's outer diameter.3. Pipe Length: Avoid excessive bending; select a proper pipe length.4. Connection: After connecting, pull the tubing gently to check its seal.5. Release: Push evenly on the release button flange for proper tubing withdrawal.6. Removal: Avoid rotating the tubing fully during removal.7. Assembly: Ensure no debris enters when screwing pipes and fittings together.Safety Instructions:1. Pressure: Ensure zero pressure in the tubing before removal.2. Spatter Zones: Avoid standard fittings in spatter-producing areas.3. Monitor Conditions: Stay within specified pressure and temperature ranges.4. Environment: Avoid corrosive gases, chemicals, and extreme conditions.5. Placement: Avoid areas with heavy vibrations or shocks.6. Direction: Install
- Tee Fittings
- 5/10/20pcs PM Pneumatic compressor Air Hose Quick Connector Kit Tube Pipe Straight Bulkhead Fitting Tubing Adapter 4 6 8 12 8mm
| Department | unisex-adult |
|---|---|
| Item Weight | 1.76 ounces |
| Manufacturer | EODDSGHT |
| Item model number | EODDSGHT |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
