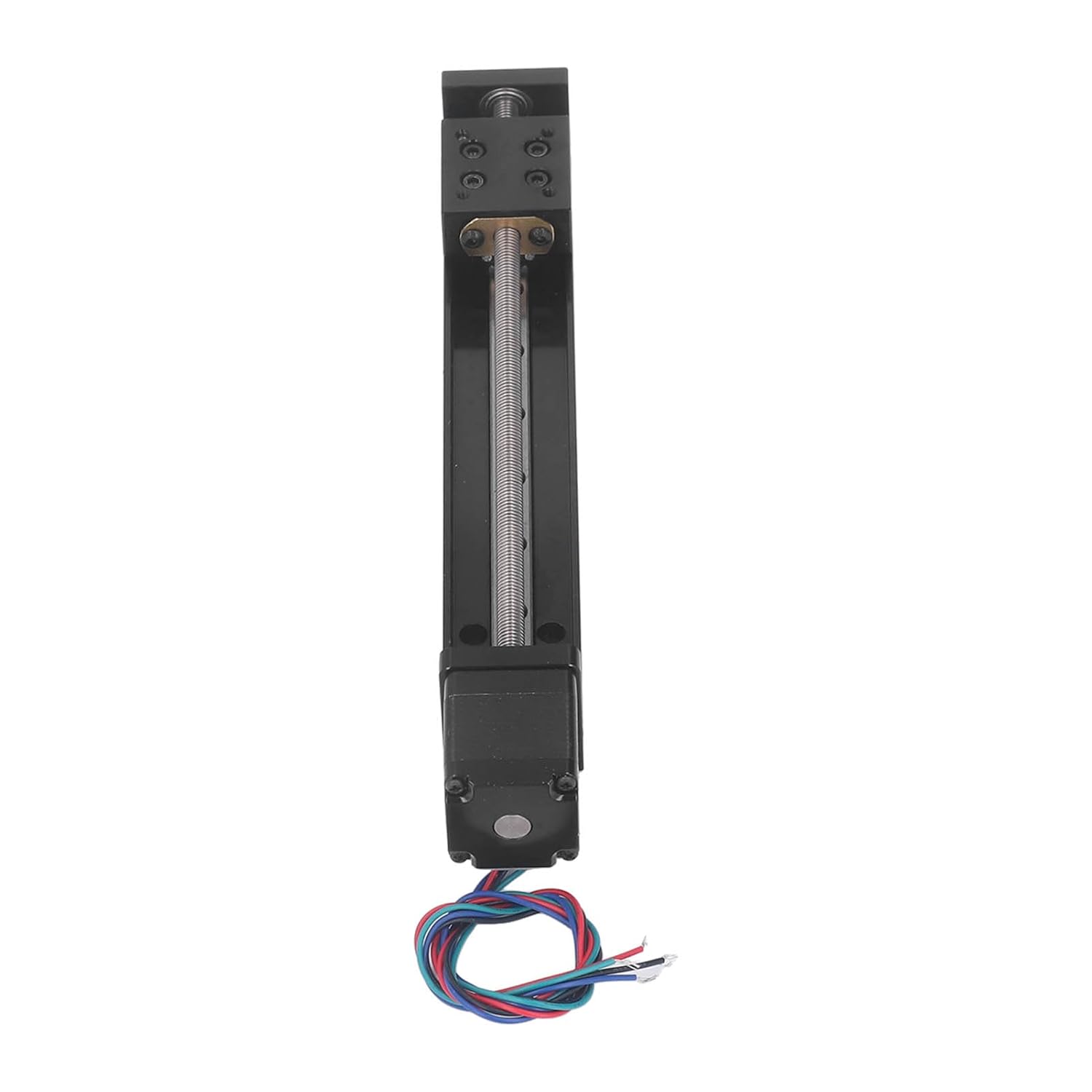

AUNMAS Linear Motion Rail Actuators, Linear Rail Slide Actuator with 200mm Stroke 6mm Screw for DIY CNC Router Machine, 28 Stepper Motion
Product details
| Management number | 211204987 | Release Date | 2026/04/04 | List Price | $17.68 | Model Number | 211204987 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Item Type: Mini Linear Rail Slide Actuator Material: Alloy Stroke: Approx. 200mm / 7.87in Load: Horizontal: ≤5KG; Vertical: ≤1KG Positioning Accuracy: ±0.1mm Holding Torsion: 6N.cm Current: 0.6A Resistance: 5.5Ω Inductance: 3.2MH Speed: 0-120mm/s Step Angle: 1.8 Degrees Diameter: Approx. 6mm / 0.24in Helical Pitch: Approx. 1mm / 0.04in Step: Approx. 1mm / 0.04in How to Use: Install and use directly. Package List: 1 x Mini Linear Rail Slide Actuator
- ACCURATE AND LOAD: Sliding table repeated positioning accuracy is ±0.05mm, the maximum horizontal load capacity is 2.5kg, the maximum vertical load capacity is 1kg, speed from 0‑120mm/s
- APPLICABLE SCENES: Sliding table is widely used in DIY CNC router parts, testing equipment, optical laboratory accuracy measurement, fine tuning displacement, production machinery, mechanical equipment positioning and movement
- STABLE AND EFFICIENT: The sliding table is made of excellent metal, possess fine workmanship, , high work efficiency, is an essential part of linear motion
- INSULATION AND MUTE: High speed mute screw rod, single track running smoothly, using insulation materials, and thickened bottom plate design to ensure stability of work
- SIZE INFORMATION: Slide actuator has 200mm effective stroke, 6mm diameter, 1mm helical pitch, 1mm step(the screw rod can move 1mm in one turn)
| Item Weight | 1 pounds |
|---|---|
| Manufacturer | AUNMAS |
| Package Dimensions | 13.78 x 4.33 x 3.94 inches |
