BTF-LIGHTING DC5V 90W UL Recognized Component Power Supply, AC100-240V to 5VDC 18A Max Power Converter Transformer Adapter for LED Strip, String,Matrix,CCTV Camera,Security System,Radio
Product details
| Management number | 211284206 | Release Date | 2026/04/04 | List Price | $12.40 | Model Number | 211284206 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

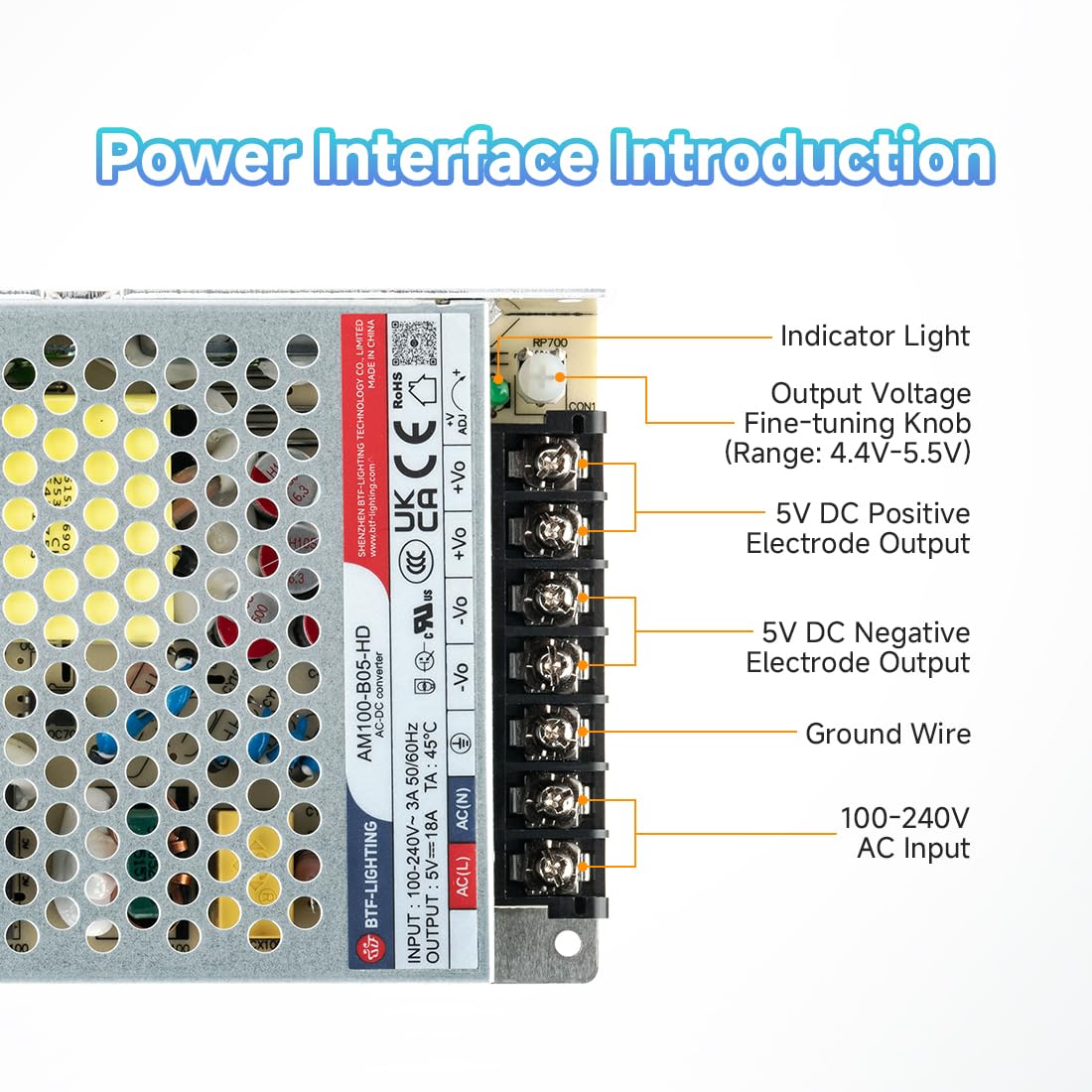

- 【Input & Output】Universal 100 - 240VAC or 120 - 370VDC input voltage;DC 5V 90W output, adjustable ±10% (4.5V-5.5V), up to 18A maximum current and 90W power. Compatible with devices drawing 1A to 18A at 5V DC.
- 【Safety & Protection】UL Recognized Component, CE, RoHS, UKCA, CCC. Multiple protections: overload, over-voltage, over-temperature, short circuit cut-off with automatic recovery. Operating temp: -30°C to +70°C. Low standby power, high efficiency. High I/O isolation test voltage up to 4000VAC. Low ripple & noise. OVC III (meets EN62477). Altitude up to 5000m.
- 【Product Features】It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/EN/UL62368, EN60335, GB4943, EN61558 standards.
- 【Stable & Durable】 Constructed with high-quality materials and a porous metal housing for efficient heat dissipation, compact size, and reliable performance stability. Designed exclusively for indoor use.
- 【Wide Applications】 Perfect for a variety of 5V DC projects, including LED strips (e.g., WS2812B, WS2811, SK6812), LED matrices,LED matrix, LED string, pixel lights, fairy strings, CCTV cameras, security systems, computer projects, A/V equipment, measuring instruments, and industrial machinery,Street light control,Electricity,Security,Telecommunications
- 【Warm Tips】 For optimal safety and lifespan, choose a power supply with at least 20% higher wattage than your device’s rated power. Avoid overloading—recommended for devices under 50W. Do not use as a battery charger. Power cord not included; search for "3 Prong AC power cord" if needed. Backed by a 2 years warranty.300W+ power adapters come with a built-in cooling fan; those below 300W do not.
| Model | AM100-B05-HD |
|---|---|
| Brand Name | BTF-LIGHTING |
| Part Number | AM100-B05-HD |
| Manufacturer | Shenzhen BTF-Lighting & Technology Co., Ltd. |
| Power Source | Corded Electric |
| Mounting Type | Plug In |
| Current Rating | 18 Amps |
| Specification Met | CCC, CE, RoHS, UKCA, UL |
| Included Components | 1x UL Power supply |
