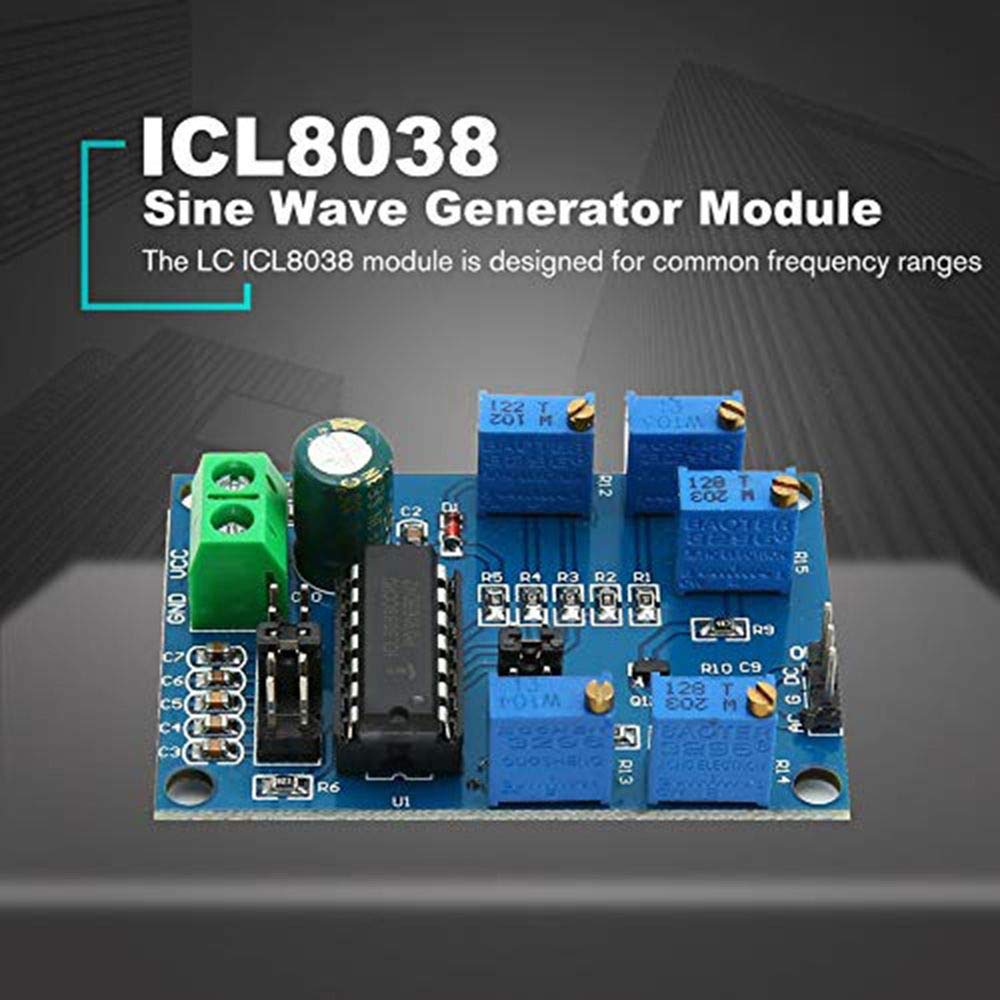

DAOKI Signal Generator Module ICL8038 Medium Low Frequency Signal Source 10Hz-450KHz Triangle Square Wave Triple Waveform Generator Module with 3 Pin Jump Wire
Product details
| Management number | 211160363 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211160363 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

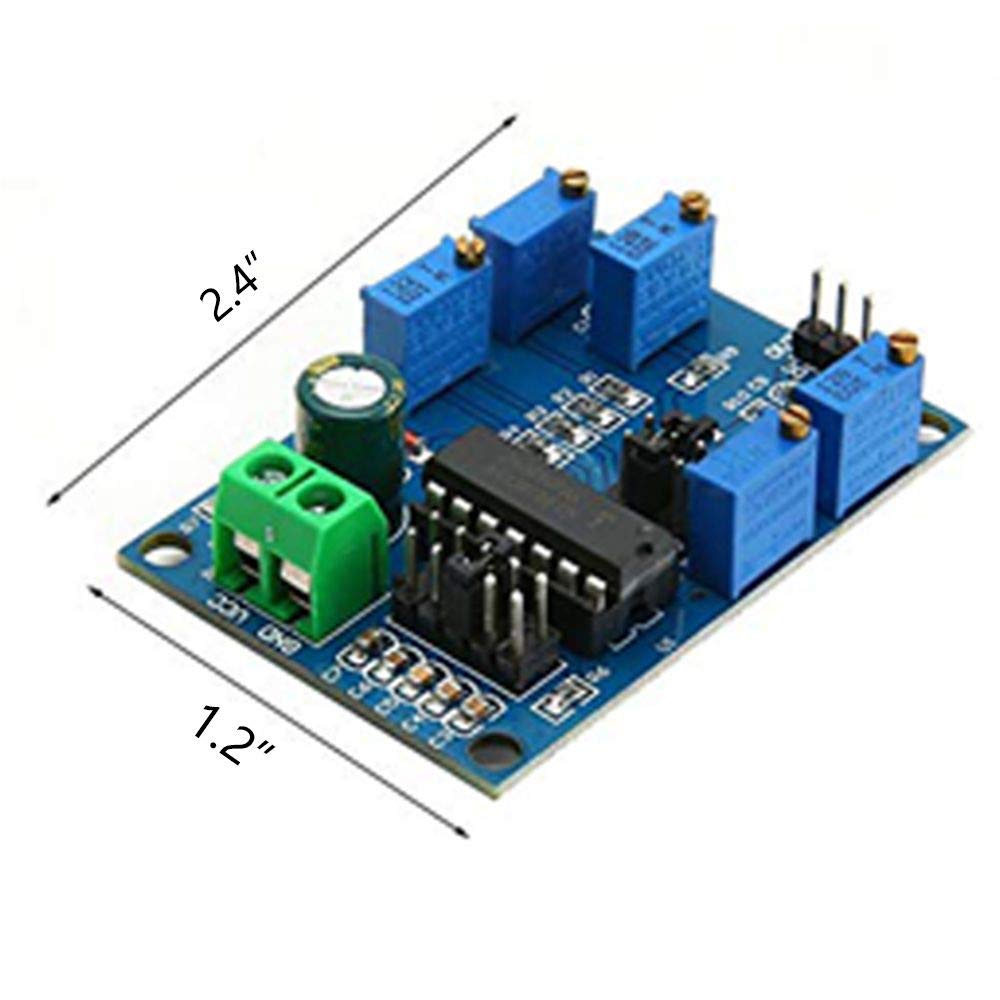

Description: Operating voltage: DC 12-15V. Output waveform: square wave, triangular wave, sine wave. Distortion: less than 1% sine wave distortion. Duty ratio: less than 50ppm / ℃. Triangular wave: with 0.1% high linearity. Working temperature: 0 ~ 70 ℃. Product Size: 53.8 x 37.7 x 15mm /2.4 x 1.2 x 0.59"(L*W*H). Net weight: 18g/0.04lb. Package Included: 1 x ICL8038 Signal Generator Module 1 x 11.8" male-FeMale 3 Pin Jump Wire 1 x 11.8" Female-Female 3 Pin Jump Wire
- The ICL8038 is a precision oscillating integrated circuit with multiple waveform outputs. The frequency and duty cycle of the output waveform can also be controlled by current or resistance. By the chip has a FM signal input, it can be used to low-frequency signal frequency control
- Has a frequency change in the occurrence of a low frequency drift, the maximum does not exceed 50ppm / ℃; with sine wave, triangular wave, square wave and other functions of the signal output; sine wave output with less than 1% of the distortion
- Triangular wave output With 0.1% high linearity; wide working cycle, 2% -98% arbitrarily adjustable; easy to use, requires only a few external conditions.

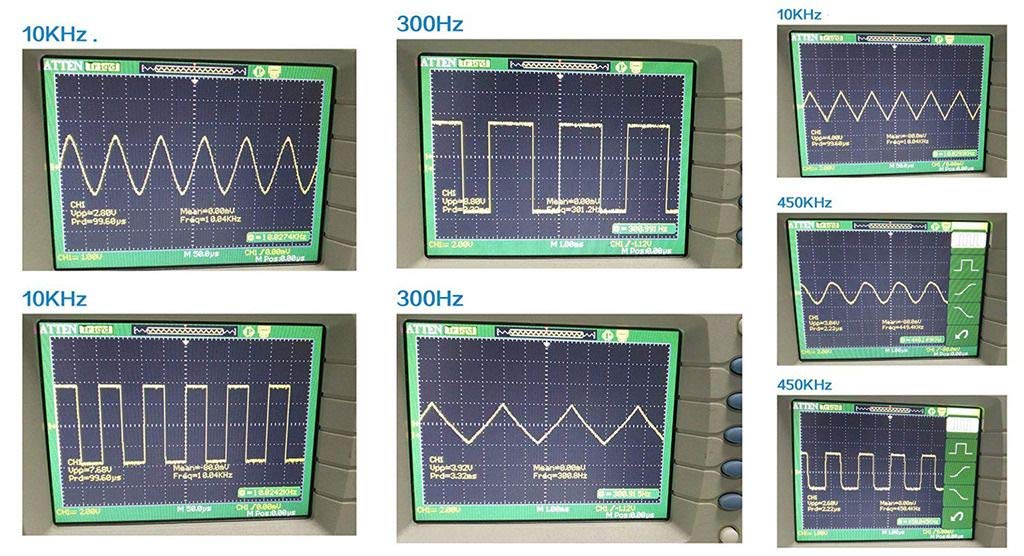

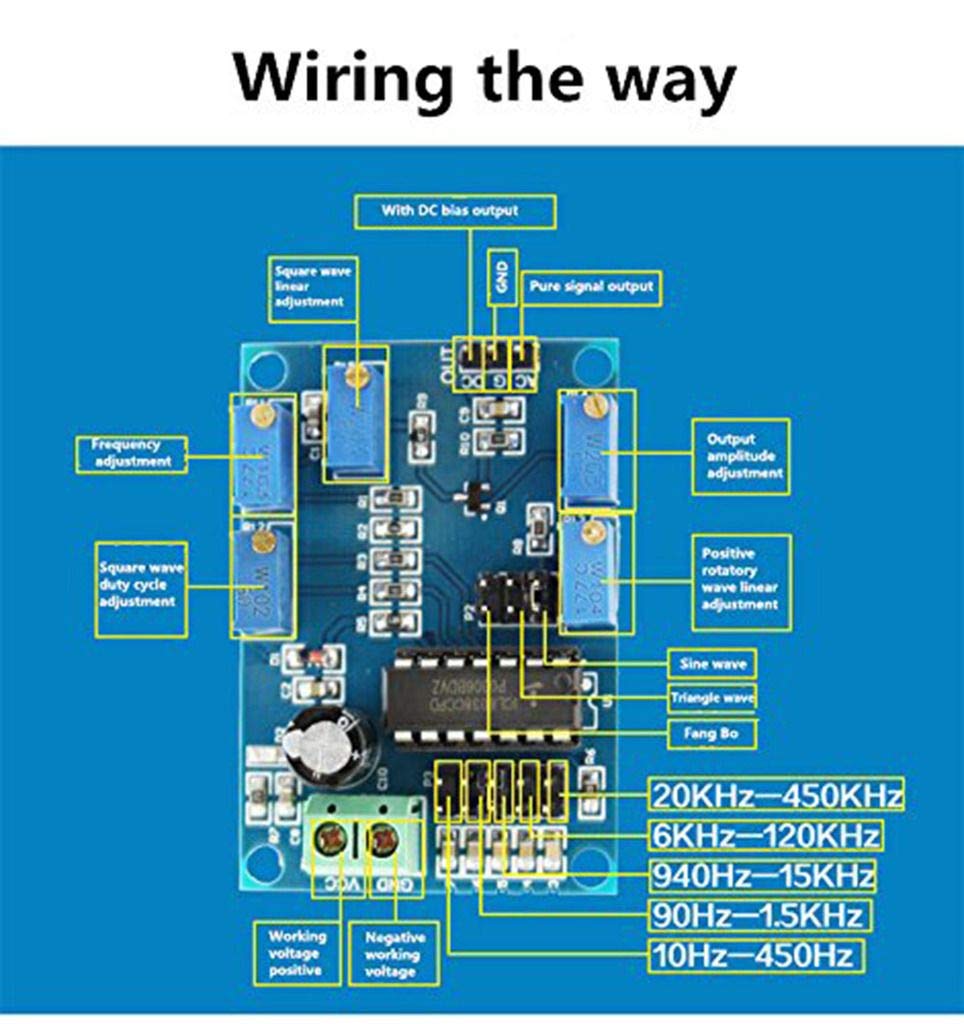

- This module is designed for the frequency range commonly used, adjustable from 5 stalls, Can produce from 10Hz ~ 450KHz low distortion of the sine wave, triangular wave, square wave pulse signal.
- Sine wave can be used for test signal, drive signal, carrier frequency signal; square wave can be used for switching signals, trigger signals, etc .; triangular wave is mainly used for scanning signals.
