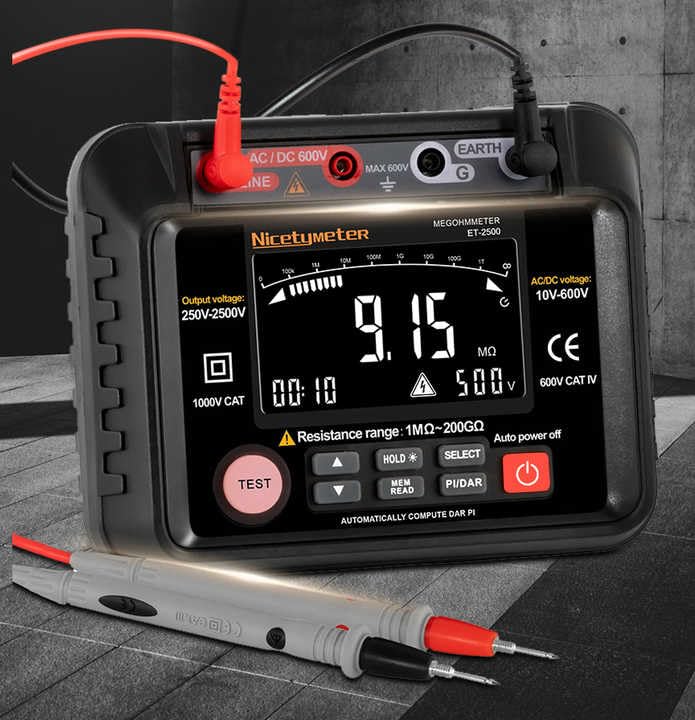

ET-2500 Digital Megohmmeter High Voltage Insulation Meter Insulation Resistance Tester 250/500V/1000V/2000V/2500V Super Clear VA Display

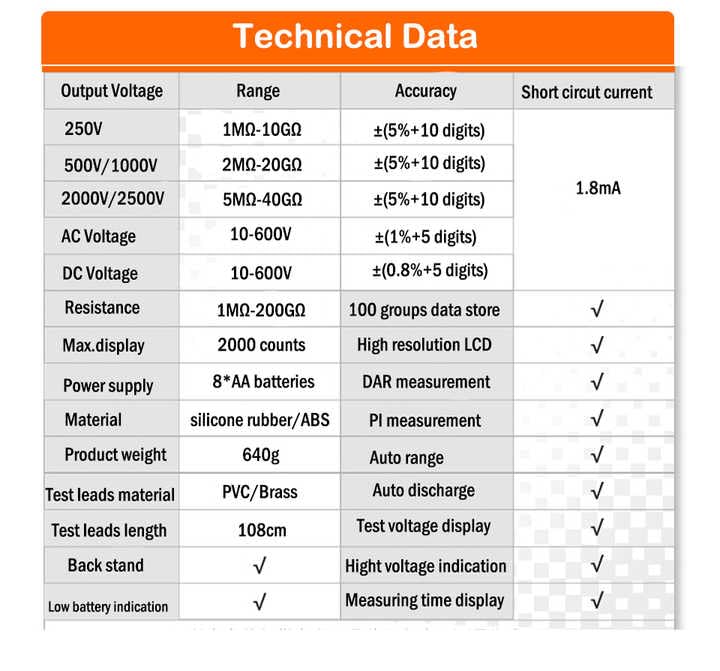

Features:12-in-1 Multifunctional Tester – Combines essential electrical testing capabilities in one device.Insulation Resistance Measurement – Ensures safety and compliance for electrical systems.AC/DC Voltage Detection – Versatile for both alternating and direct current applications.Polarization Index (PI) & DAR Testing – Evaluates insulation health for maintenance.Data Storage (100 Groups) – Conveniently saves readings for later analysis.Backlit Display & Data Hold – Enhances visibility and accuracy in low-light conditions.Time Measurement Feature – Tracks test duration for diagnostics.Shockproof & Durable Design – Built to withstand harsh environments.Auto Power Off & Low Battery Alert – Saves energy and prevents unexpected shutdowns.Integrated Table Stand – Allows hands-free operation for efficiency.Ideal for: Electricians, engineers, and maintenance professionals requiring reliable insulation testing and voltage diagnostics.Parameters:Model: ET-2500Display Type: Digital onlyDisplay: 1999 LCD with backlightMeasurement range: 1Mohm to 40GohmTest Voltage: 2.5kVAccuracy: ±(5.0%+10)Operating Temperature: 0-40Voltage output: 250V 500V 1000V 2000V 2500VPower supply: 8 x 1.5V AA batteriesDimension: 178*70*140mmWeight: approx. 640 gramsSpecification:Rated voltage: Resistance rangeModel No. 250V: 2MΩ—20GΩ ±(5%+10)500V/1000V: 1MΩ—20GΩ ± (5%+10)2000V: 3MΩ—200GΩ ± (5%+10)2500V: 5MΩ—200GΩ ± (5%+10)AC voltage: 10-600V ± (2%+3)DC voltage: 10-600V ± (0.8%+5)Packing List:Insulation resistance testerAlligator clipCarrying bagUser manualTester leadsShielded signal wire

• 12-in-1 Multifunctional Tester
• Polarization Index (PI) & DAR Testing
• Shockproof & Durable Design
• Integrated Table Stand
• Auto Power Off & Low Battery Alert
