JDS8060 JDS8080 60/80M DDS Function Signal Generator 2-CH Arbitrary Waveform Generator Frequency Meter Counter 275MSa/s 14bits(JDS8080 80MHz,AU)

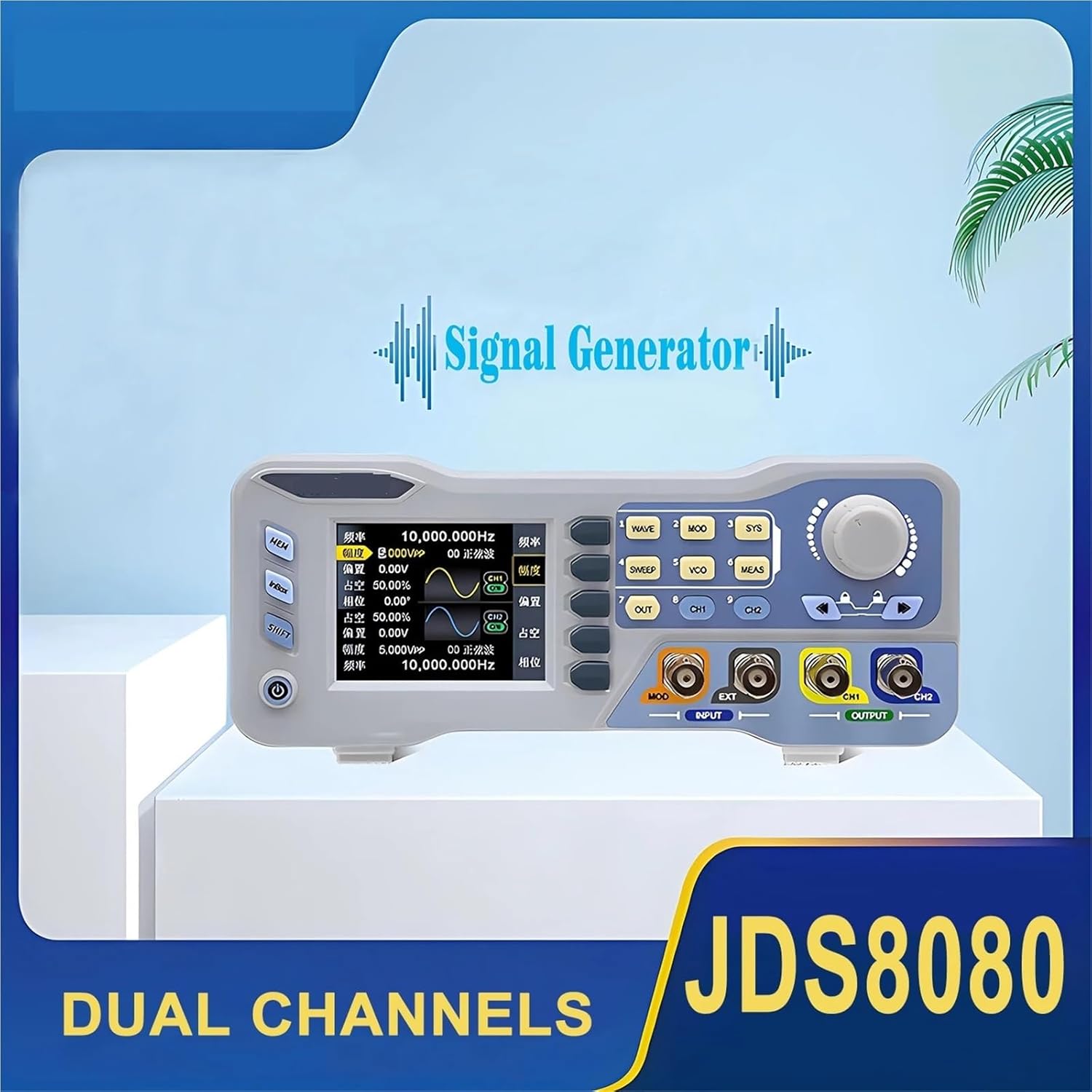

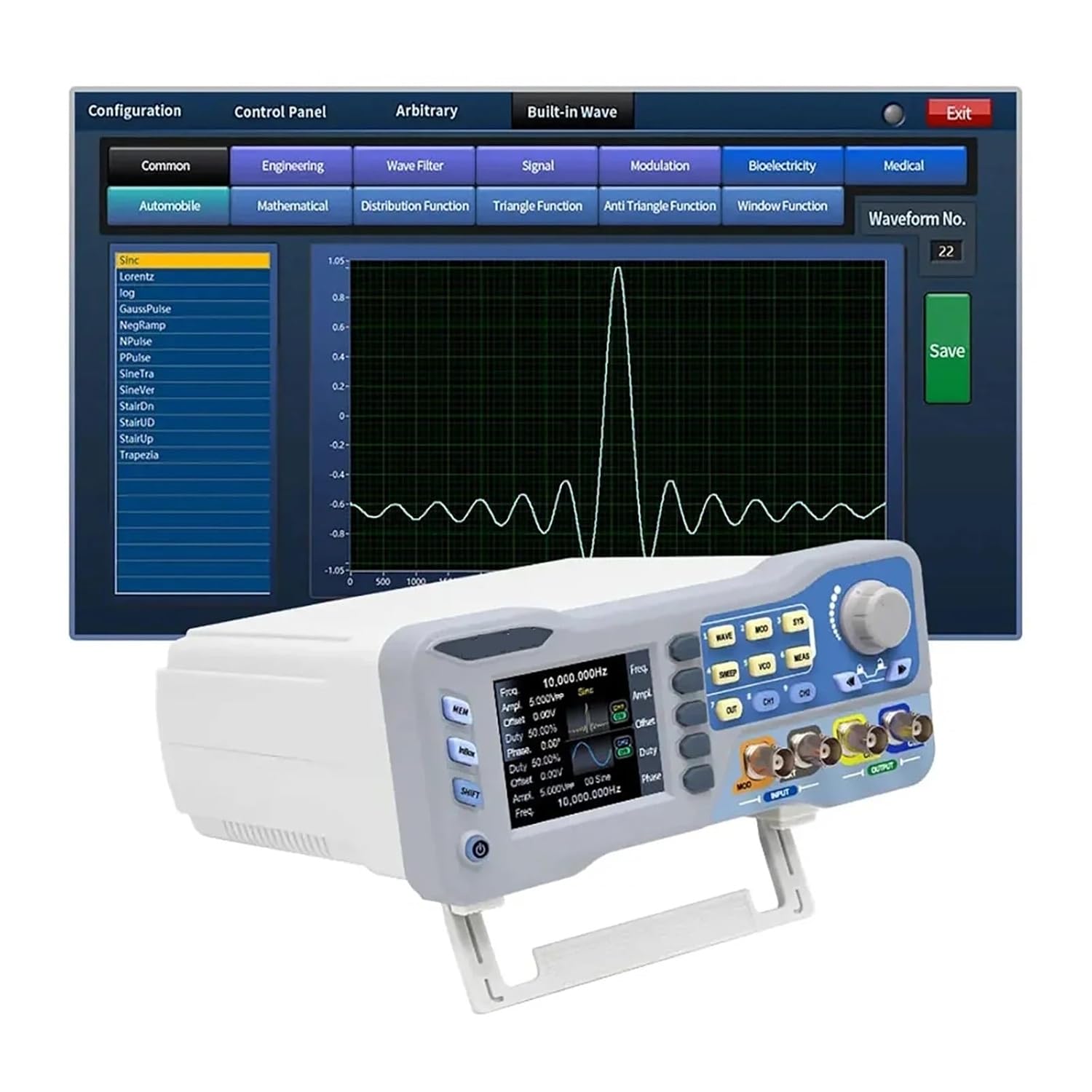

Function GeneratorsJDS8060 JDS8080 60/80MHz DDS Function Signal Generator Dual CH 275MSa/s 14bits Arbitrary Waveform Generator Frequency Meter Counter PulseDescription:JDS8000 series dual channel function / arbitrary waveform signal generator adopts a 2.8-inch color screen and comfortable silicone keys. It can output sine wave, square wave, triangular wave, pulse wave, DC signal and arbitrary waveform. It has the functions of waveform modulation, burst, digital adjustment of pulse width, scanning frequency, scanning amplitude, scanning duty cycle, VCO voltage controlled scanning, etc. it is equipped with a frequency meter and counter. Suitable for DIY, scientific research, teaching Product development, debugging and other scenarios.Features :1,The performance of the two channels is exactly the same, and the same or different waveforms can be output at the same time, with the phase difference of 0-359.99 ° freely adjustable;2,Sine wave output frequency range: 1nhz-60mhz (jds8060) or 1nhz-80mhz (jds8080), Output amplitude: 1mVpp-25Vpp;3,The sampling rate is up to 275MSa/s, the vertical resolution is 14bits*8192 points, and more waveform data can be obtained per unit time, thus making the waveform more accurate;4,Modulation function: Both channels can output modulation waveform signals such as AM FM PM ASK FSK PSK;5,Scanning function: scanning frequency, scanning amplitude and scanning duty cycle, with linear and logarithmic scanning modes;6,VCO voltage control scanning: Controlling the frequency, amplitude and duty cycle of the output waveform through the change of the external voltage signal;7,Pulse width modulation function: Digital adjustment of pulse width and pulse cycle time;8,Burst function: It can be set to output waveform signals of 1-1048575 arbitrary cycles;9,Arbitrary wave function: More than 160 commonly used arbitrary waveforms are built in the upper computer software, and arbitrary waveforms can be and downloaded to the signal generator with one click;10,Measurement function: Equipped with 1hz-100mhz frequency meter and counter, with AC coupling and DC coupling modes;11,Firmware update function: firmware can be obtained through firmware upgrade software to improve product performance;12,Mobile APP: Built-in chip, It can control and draw any waveform through mobile app;13,Secondary development function: provide free communication protocol and computer software to facilitate programming control;14,Multi level synchronization function: Two or more machines can output multi-channel waveform signals after being connected.Specifications :Model:JDS8060/JDS8080Channel:Dual ChannelsSine wave frequency:1nHz-60MH/1nHz-80MHzSampling Rate:275MSa/sWave length:8192 points/channelWaveform vertical resolution:14 bitsWave type:Sine wave, square wave, pulse wave (duty ratio, pulse width and cycle time can be precisely set), triangle wave, rising ramp, falling ramp, CMOS wave, DC level, half wave, full wave, positive step wave, Inverse staircase wave, exponential rise, exponential fall, Lorentz pulse wave, multisonic wave, random noise wave, trapezoidal pulse wave, Sinker pulse wave, and 99 sets of user-defined waveforms.Square wave:1nHz-15MHzTriangle wave:1nHz-15MHzFrequency resolution:1nHzRise/Fall Time:20nS<;1MHz,2mVpp~25Vpp<;11MHz,2mVpp~10Vpp<;60MHz,2mVpp~5Vpp60MHzFrequency80MHz,2mVpp~3.6VppAmplitude resolution:1mVppAmplitude stability:± 1% ±1mVpp (@ 1kHz,>10mVpp)Amplitude flatness:Frequency10MHz:±1%(0.1dB)<;Frequency50MHz:±2%(0.2dB)<;Frequency60MHz:±10%(0.9dB)Offset range:-9.99V-12.00VOffset resolution:0.01VPhase adjustment range:0°-359.99°Resolution:0.01°Output impedance:50 (typical)Modulation type:AM,FM,PM,ASK,FSK,PSK,PWMTrigger :Manual burst, CH2 burst, external burst (AC), external burst (DC)Measurement function:Frequency, positive and negative pulse width, period, duty cycleCounter range:0-4294967295Sweep function:Sweep frequency, sweep amplitude, sweep dutySweep mode:Linear, logarithmicVCO function:Frequency control, amplitude control, and duty cycle controlRunning mode:Debugging,normalProduct packaging size:300*240*150mmProduct weight:1.35kgPacking Included :1 x JDS8000 Signal Generator Host1 x USB Data Cable1 x Power Cable2 x BNC to Alligator Clips Test Lead1 x BNC Male Test Lead1 x User ManualEquivalent dual channels can output the same or different function signals orarbitrary waveform signals at the same time; All parameters can be adjustedindependently. The phase difference between the two channels is 0-359.99 degrees adjustable.You can use sine wave, square wave, triangle wave, or arbitrary wave to generatepulse train, and the number of pulse period is adjustable between1-1048575.Pulse width adjustment range:.020us-4sPulse period adjustment range:0.02us-40sThe pulse bias is adjustable; the pulse amplitude is adjustable, accurate to 0.01V.With independent operation interface, the function is clear; there is an independentcontrol switch, which is convenient for control.The pulse width and pulse cycle time of the pulse wave can be digitally adjustedprecisely and can realize the pulse waveform wide range of precise setting, nojitter output.More types of modulated waveforms and more detailed modulation: theinformation of the signal generator is processed and loaded onto the carrier.The process of bringing it into a form suitable for channel transmission is thetechnique of changing the carrier wave with the signal.The frequency, amplitude and duty cycle of the output waveform can be controlled byan external analog voltage signal to realize the voltage-controlled sweep frequency,sweep amplitude and sweep duty cycle, which is widely used in the industrialdebugging process.Measuring the frequency of the waveform signal and calculating the number of cyclesof the waveform;After downloading and installing the APP, connect the instrument through ,you can view all relevant data on the APP, and set all functions through the mobile APP.Instrument control: all functional operations are intuitively displayed in the softwareinterface, so that users can quickly adjust the functional parameters of the instrumentand greatly improve the working efficiency of the instrument.Arbitrary waveforms can be drawn using PC software; arbitrary waveform CSV table data can be imported and exported using mobile APP; secondary development can be turned into control by using communication protocols;Both the PC software and the mobile APP can complete all the operation settings of the machine, making your use more convenient;1.Signal generator 2.power cable3.BNC male test lead 4.USB data cable5.BNC to alligator clips test lead 6.Quick guide==========Battery Included : NoHigh-concerned chemical : NoneModel Number : JDS8060/JDS8080Display Size : 2.9 Inches & UnderDIY Supplies : ElectricalCertification : ,FCC,pseType : DDS Digital Signal GeneratorChannel : Dual ChannelsWaveform : Sine/Square/Pulse/Ramp/Noise/DC/ ArbitrarySine Frequency : 60MHz/80MHzSquare Wave : 1nHz-15MHzTriangle Wave : 1nHz-15MHzModulation Function : AM/FM/PM/ASK/FSK/PSK/PWM/BurstSampling Rate : 275MSa/SWave Length : 8192 PointsVertical Resolution : 14 bitsSweep Mode : Logarithmic/LinearFunction 1 : Function Signal GeneratorFunction 2 : Arbitrary Waveform GeneratorFunction 3 : Frequency MeterFunction 4 : Pulse GeneratorFunction 5 : Measuring and CounterOther Function 1 : Modulation FunctionOther Function 2 : Burst FuctionOther Function 3 : Voltage Controlled RegulationOther Function 4 : Mobile APP Control

• Function Generators
• JDS8060 JDS8080 60/80M DDS Function Signal Generator 2-CH Arbitrary Waveform Generator Frequency Meter Counter 275MSa/s 14bits
