Linear Rail Slide Linear Motion Stage Table 3.2Nm Integrated NEMA23 57mm Closed-Loop Stepper Motor Kits 40kg Load 200mm Stroke SFU1605 Ball Screw Linear Actuator for CNC

Space-Saving Precision: This compact combo integrates a single-rail linear stage with an all-in-one closed-loop NEMA 23 motor (driver + encoder built-in). It delivers zero lost-step performance in tight spaces, simplifies wiring, and offers robust load capacity for precision automation projects.

• Compact Single-Rail Stage + 3-in-1 Closed-Loop Motor: The single linear guide rail design minimizes installation footprint, ideal for space-constrained projects. The integrated 57mm closed-loop stepper (motor, driver, encoder) actively prevents lost steps, reduces heat, and eliminates external driver wiring. Combined with a precision ballscrew (e.g., SFU1605), it ensures smooth, accurate motion with high repeatability.

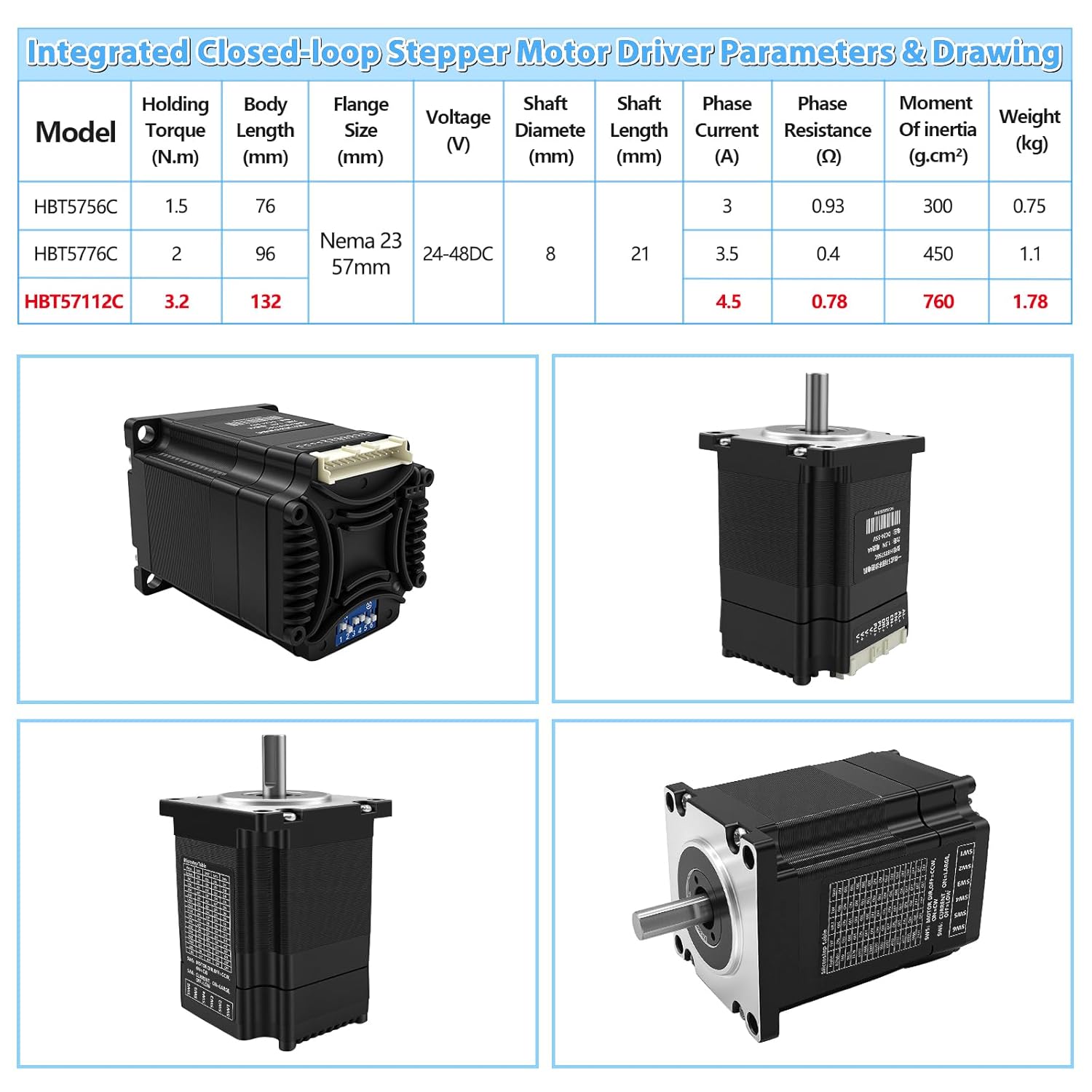

• Motor Specifications: Holding Torque 3.2N.m. Running with no vibration/noise and high torque, good substitution of AC/DC servo motor at low speed.Type: Hybrid; Encoder line number: 1000; Motor length: 57x57x132mm / 2.24*2.24*5.2 inch; Shaft Diameter:8mm; Lead wire: 4; Support DC Power Supply:DC24-55V; Current: 4A.
• NEMA23 57mm Integrated Closed-Loop Stepper Motor:Closed-loop motion, high positioning accuracy, fast response, and high speed to 1000 rpm. Supports speed control mode, position control mode, backlash compensation, stall detection, and many other control functions.
• Linear Rail Slide Stage Specifications:Slide Block-Guide Type: MGW12R, Slider Type: MGW12C. Horizontal loading capacity up to 88 pound / 40kg,vertical loading capacity up to 44lb / 20kgs.also low noise when working. Low noise. Ensure rigidity and smooth motion under stress.
• Linear Stage:High-Speed Precision: 20 inch/s (500mm/s) Max Speed. CNC Linear Stage Motion Actuator Stroke: 8 inch / 200mm. Total length: Effective Stroke(8 inch) + 4.7inch(120mm) = 12.7inch(220mm). Linear motion guides fully aluminum structure offer excellent strength and avoid rusting.
