MICTUNING P1B 12 Gang Switch Panel, Multifunction Toggle Momentary Flash Strobe Pulsed with Backlight Off Toggle Switch Pod On Off Circuit Control Relay Box for Car Truck Off Road Marine, Green
Product details
| Management number | 215480769 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 215480769 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 4 Control Modes: 4 Different Colors represent 4 Different Control Modes: Red - Toggle, constant light mode. Green - Momentary ignition power, press and hold to turn on, release to turn off. Blue - Flash Light Mode, flashing at a lower speed which can be used for turn signal. Cyan - Pulsed Strobe Mode, used for emergency light or warning light. You can easily switch between modes in different situation
- Backlight OFF & 6-Level Brightness: Features a manual backlight off function, turn off backlight for a more comfortable visual experience and energy conservation. Also, there are 5-level backlight brightness (100%, 75%, 50%, 25%, 10%, 0%) to adjust according to the environment
- 3 Silicone Function Buttons: MICTUNING P1B 5 Inch 12 Gang Switch Panel designed with 3 silicone button which have a comfortable touch and are highly responsive, allow for blind operation. Including ON/OFF switch with memory function, Brightness Adjustment Button, Green Color Button

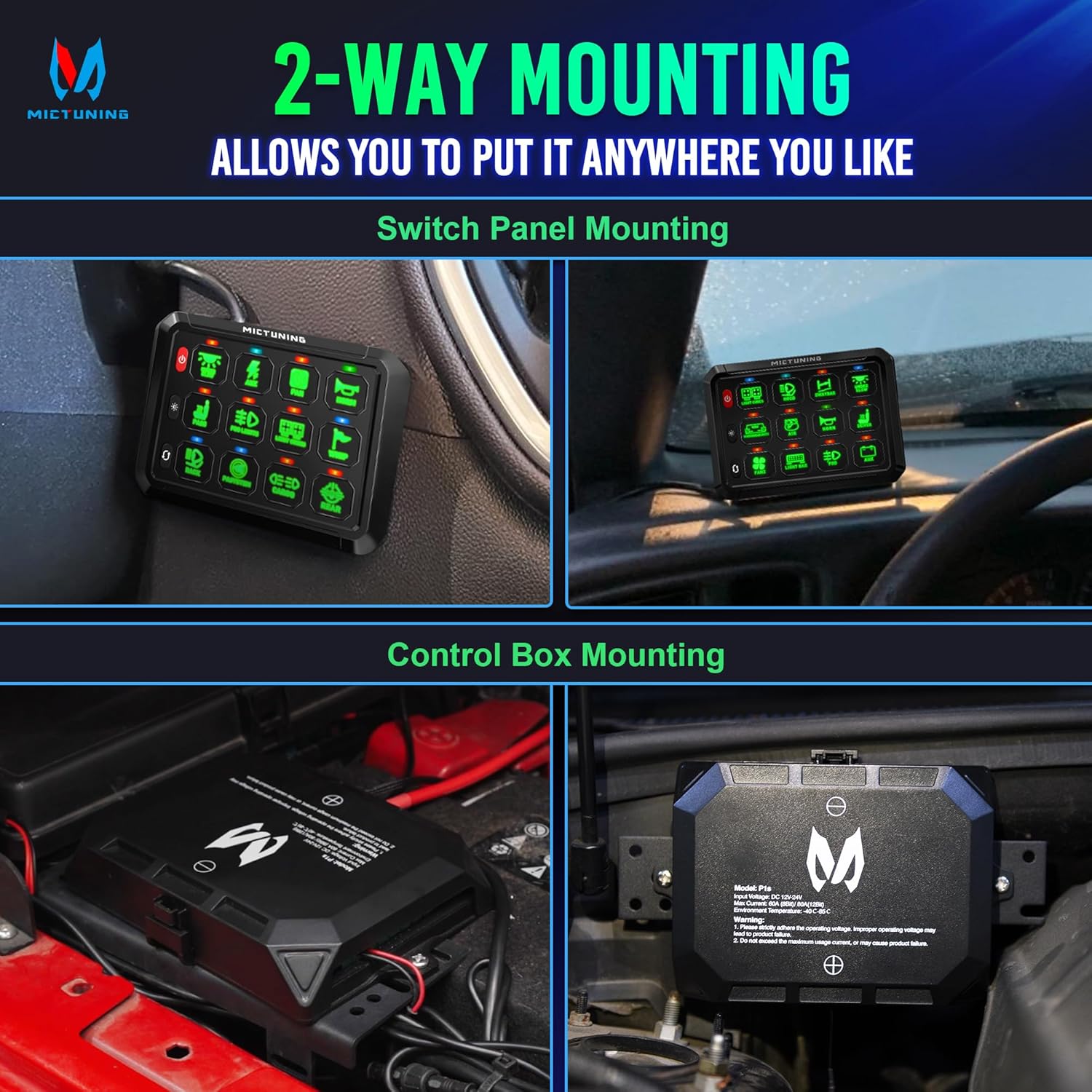

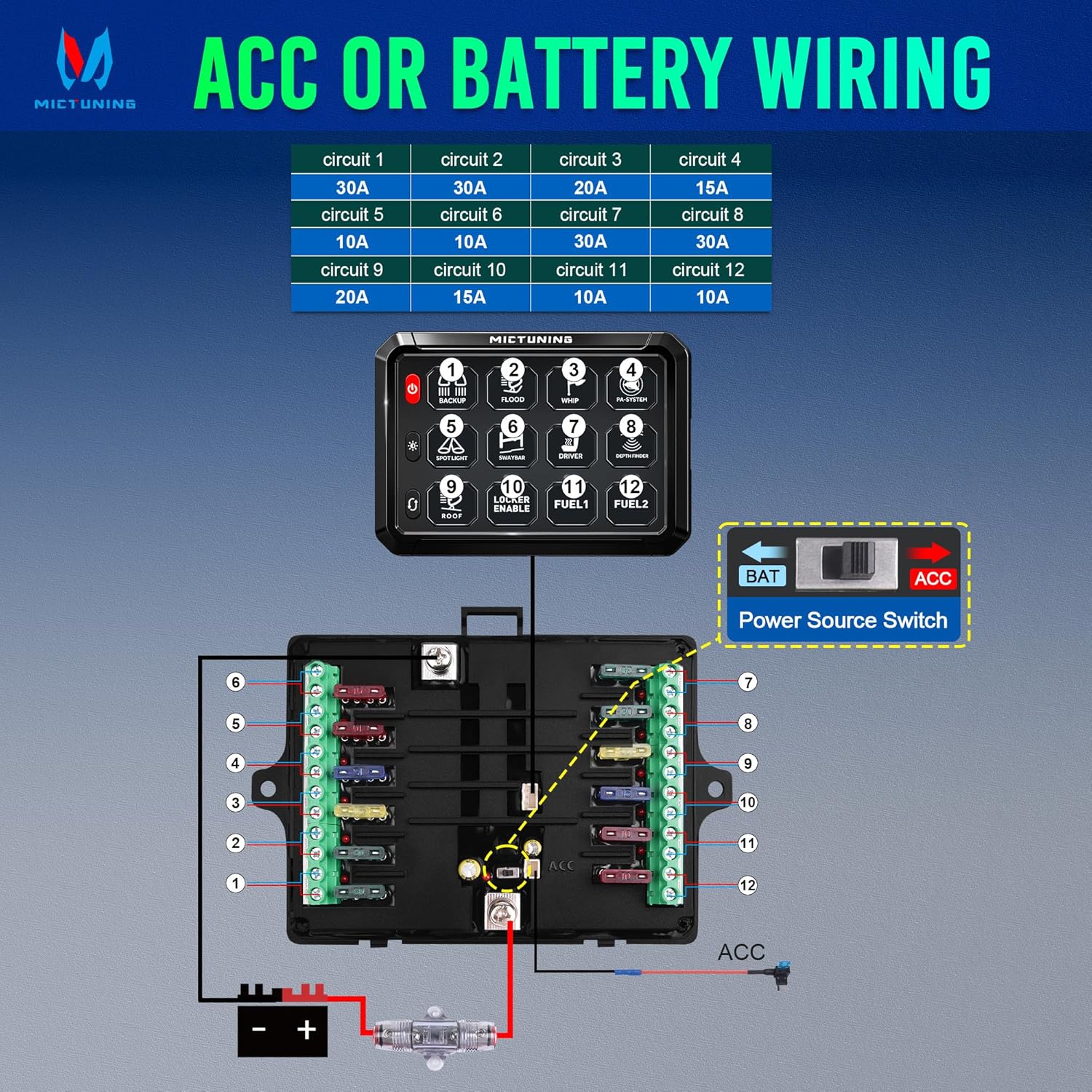

- Two ways for Power Source: The control box switch provides two ways to obtain power: connect ACC or Battery. Different mounting brackets for flexible and quick installation. Bonus 140pcs labeling stickers included to customize your switch panel buttons. And fuse to well protect your car circuit
- Reliable Switch Pod: Good for controlling multiple lights and accessories, makes wiring neater and easier. 12 gang Switch panel Rated at 960W@12V,1920W@24V, Max Current: 80A Operating Temperature: - 40°C ~ + 105°C, IP65 waterproof rate. Suitable for 12V/24V RV, marine, car, truck, off-road, ATV/UTV, boat, yachts, Caravans, etc
| Model | MIC-P1B12G |
|---|---|
| Wattage | 1920 watts |
| Terminal | Screw |
| Brand Name | MICTUNING |
| Unit Count | 1.0 Count |
| Switch Type | Toggle |
| Circuit Type | 12-way |
| Contact Type | Normally Open |
| Manufacturer | MICTUNING |
| Actuator Type | Touch |
| Material Type | Aluminum, Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 80 Amps |
| Operation Mode | manual |
| Controller Type | Physical Button" or "Mechanical Knob |
| Item Dimensions | 10 x 6 x 3.5 inches |
| Number of Items | 1 |
| Contact Material | Brass, Copper |
| Operating Voltage | 12 Volts |
| Specification Met | Ip65, Operating Temperature: -40°c ~ +105°c |
| Number of Positions | 12 |
| Upper Temperature Rating | 105 Degrees Celsius |
| International Protection Rating | IP65 |
