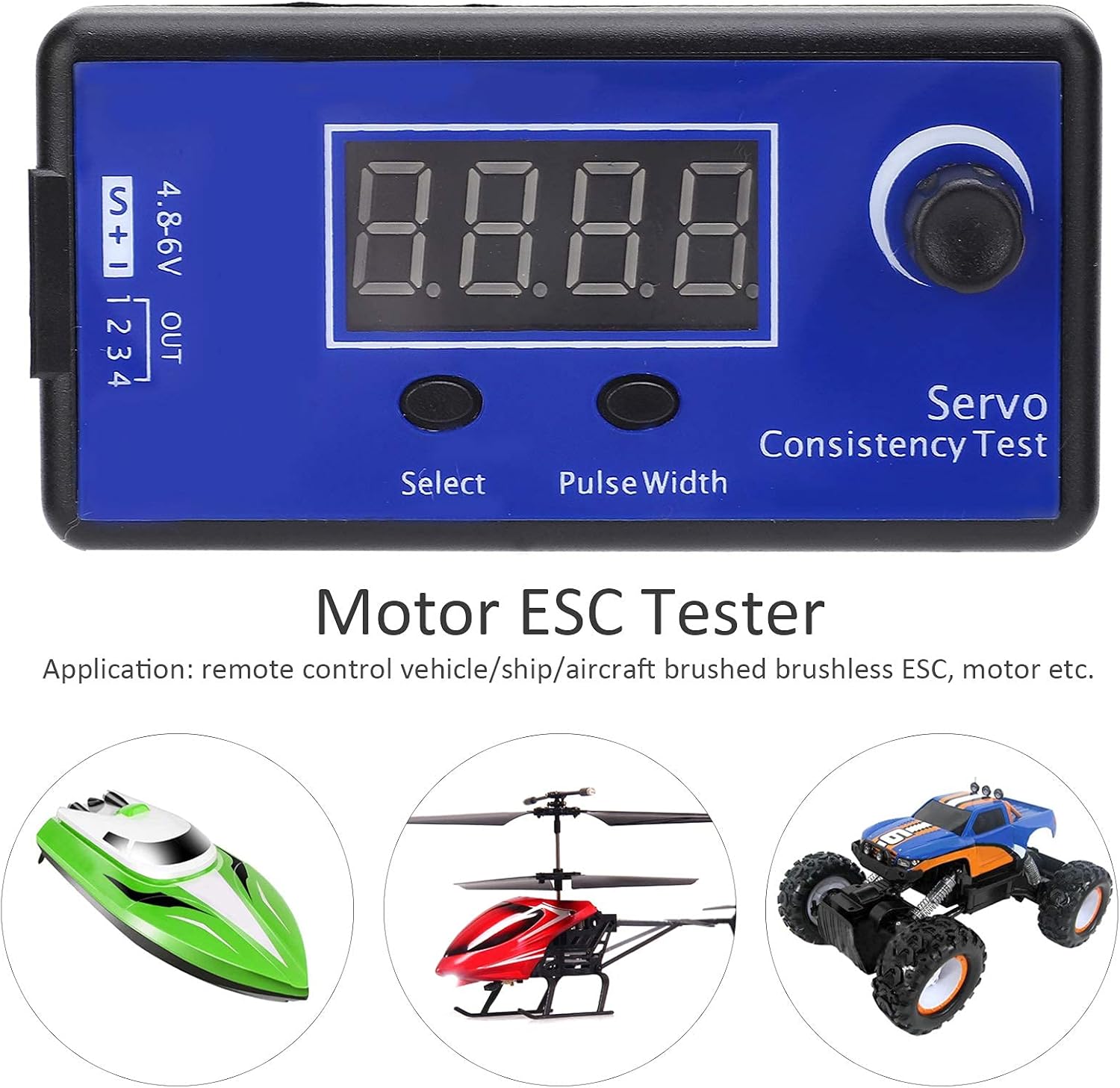

Multi-Function Digital Servo Tester, RC ESC and Motor Tester for Brushed & Brushless Motors (Compatible with RC Cars/Boats/Ai

Specification: Condition: Brand New Item Type: ESC Tester Material: Plastic + Electronic Components Color: Blue Size: Approx. 75 x 38 x 15mm / 3 x 1.5 x 0.6in (main part) Working Voltage: 4.8-6.0V Width: 800-2200US 1. 50H analog servo cycle 20US frequency 50HZ 2. The cycle 125H digital steering gear is 8US frequency 125HZ 3. 250H digital servo cycle 4US frequency 250HZ of Use: Synchronous output control can be used to test the synchronization capability of multiple steering engines, or the rotation speed difference of steering engines. It can accurately output the and test whether the steering gear can respond to the tiny pulse . It can test the electric adjustment and simulate the oil pushing action of the remote control. Usage: Power into manual mode automatically, you can turn the knob to adjust the width of pulse . Select key Toggle function (neutral, automatic, manual) Frequency switch key: Cyclic switching frequency (50Hz/125Hz/250Hz) Analog steering gear: 50HZ Digital steering gear: 125/250Hz Quantity: 1 Application: remote control vehicle/ship/aircraft brushed brushless ESC, motor etc. Note: 1. No backconnect , do not backplug power supply. 2. Digital or analog should adjust the button to select the corresponding servo system, and then plug in the steering servo to avoid damage to the server. 3. When testing the steering gear, the power supply should be connected to the voltage, and the output should be connected to the steering gear. 4. When measuring the electrical and mechanical adjustment, the power supply does not need to be connected to the voltage, and the electrical adjustment line is connected to the output end. Package List: 1 x Tester

• * Application-- Synchronous output servo system and servo performance for precise control servo and the output .
• * Rotational potentiometer-- Test for subtle changes in each steering gear. (1 millisecond = 1000 microseconds).
• * Rotational potentiometer-- Rotational potentiometer can reduce or increase the width of the output pulse.
• * Multifunctional -- 8002200us width and 4.86.0v working voltage, multifunctional RC tester.
• * Suitable for-- Suitable for remote control car, boat, airplane, brushless and brushed ESC servo testing.
