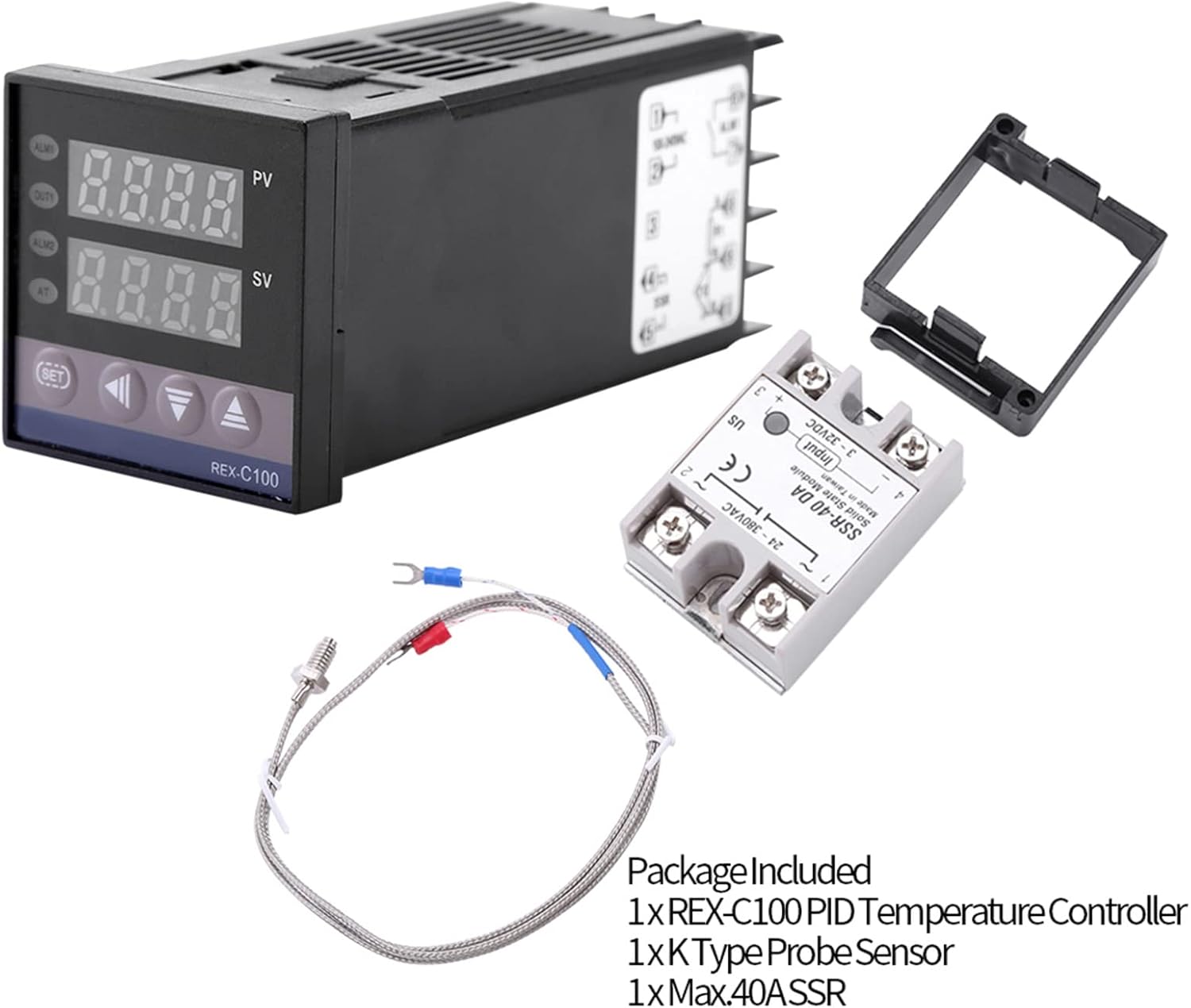

PID Temperature Controller Kit LED REX-C100 with 40A SSR K Type Probe Sensor AC 110V-240V 0℃~1300℃ Alarm Function for Industrial Equipment Heating Systems

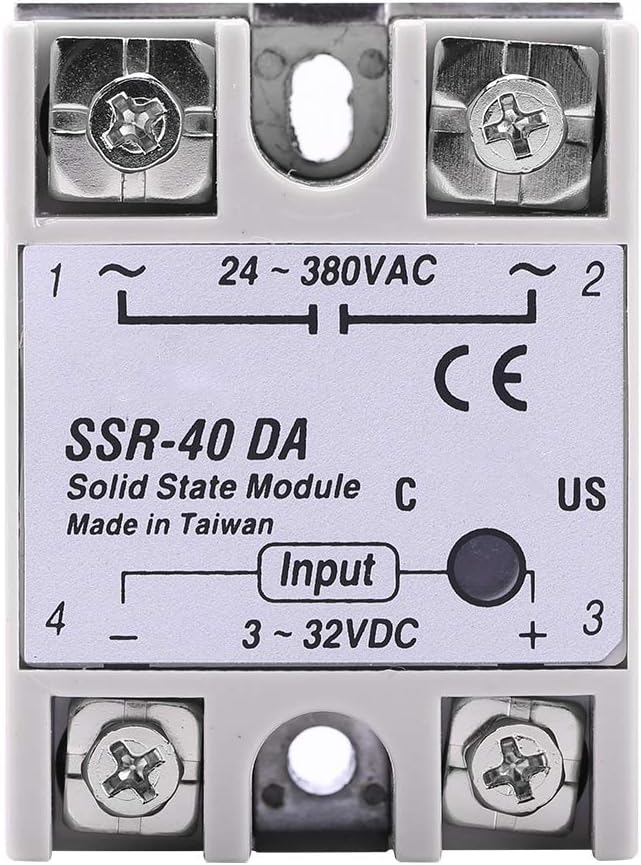

Specifications: Measuring Accuracy: ±0.5%FS Cold-end Compensation : ±2℃ (can be modified by software in 0~50℃) Resolution: 14 bit Sampling Cycle: 0.5 Sec Power: AC 110V-240V 50/60HZ Relay Output: Contact capacity 250V AC 3A (resistive load) Alarm Function Output: 2 ways Proportional Band (P): 0~full range (ON/OFF control when set to 0) Detective Temperature Range: 0℃~3000℃ Insulation Resistance: >50M ohm (500V DC) Insulation Resistance: 1500V AC/min Insulation Resistance: Power Consumption <10 VA Service Environment: 0℃~50℃ Size: 48 × 48 × 110mm / 1.89 × 1.89 × 4.33" K Thermocouple Probe Cable Length: 1M Sensor Diameter: 4.5mm Temperature Range: 0 to 400℃ Internal Insulation: Fiberglass External Shielding: Insulated Shielding Max.40A SSR Output Voltage Range: Standard Type Output Current: 40A Input Voltage: DC 3V-32V Output Voltage: 24V-380V AC Package Includes: 1 x REX-C100 PID Temperature Controller 1 x K Type Probe Sensor 1 x Max.40A SSR Note: This K type probe sensor in this set is only 400℃; you will need to install a 1300℃ probe sensor(not included) to reach 1300℃.

• Function: Self diagnosis function, self-tuning function and high intelligent control function help the operator get good effect by simple
• Self-tuning PID Technology: Adopts industrial-grade professional self-tuning PID technology, High sensitivity, Accurate temperature control
• Multi-functional Controller: This multi-functional controller has special switching power supply and SMT
• Usage: Widely applied to electric power, chemical industry, injection food, incubator, oven and many other equipment
• PIN control (including ON/OFF, step-type PID and continuous PID. Process Value (PV), Setting value (SV).
