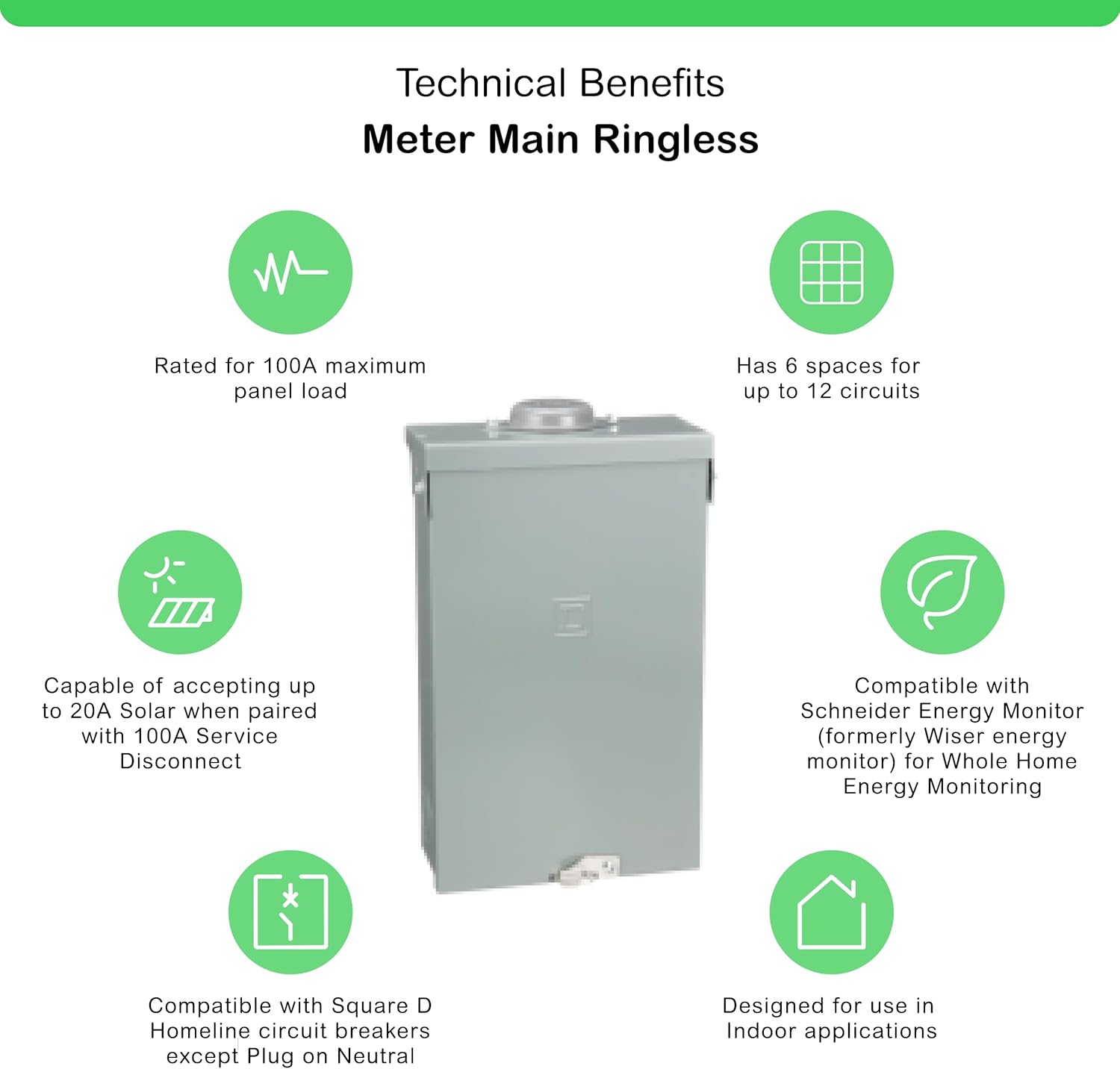

Square D by Schneider Electric Homeline 100 Amp Outdoor Main Lug Load Center, Circuit Breaker Box, 6-Space 12-Circuit, 120/240 VAC, UL Listed, Rainproof NEMA 3R Enclosure (HOM612L100RBCP)
Product details
| Management number | 210271517 | Release Date | 2026/04/02 | List Price | $22.52 | Model Number | 210271517 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Square D by Schneider Electric Homeline Load Center (HOM612L100RBCP) is a high-performance 100 amp breaker box engineered for safe, reliable power distribution in residential environments. With a capacity of 6 circuit spaces and support for up to 12 circuits, this outdoor breaker panel offers scalability and versatility for future electrical needs. Its rugged NEMA 3R (Outdoor) enclosure houses a reliable tin-plated aluminum bus bar in a welded sheet steel enclosure, ensuring long-lasting performance. Accommodates a range of 6 AWG to 2/0 AWG copper or 6 AWG to 2/0 AWG aluminum wire. With 22 kA breaking capacity and 120/240 VAC rating, it’s UL Listed for peace of mind.
- HIGH-PERFORMANCE ELECTRICAL PANEL: The Square D Homeline 100 Amp Load Center offers reliable circuit protection; It is ideal for residential and commercial applications
- BREAKER DETAILS: Plug on neutral load main breakers center with lug connections
- DURABLE 100 AMP BREAKER BOX: Constructed with a tin-plated aluminum bus bar and welded sheet steel enclosure; Designed for outdoor use; Finished with baked enamel gray coating for added durability; Distributed neutral bars keeps wiring tidy

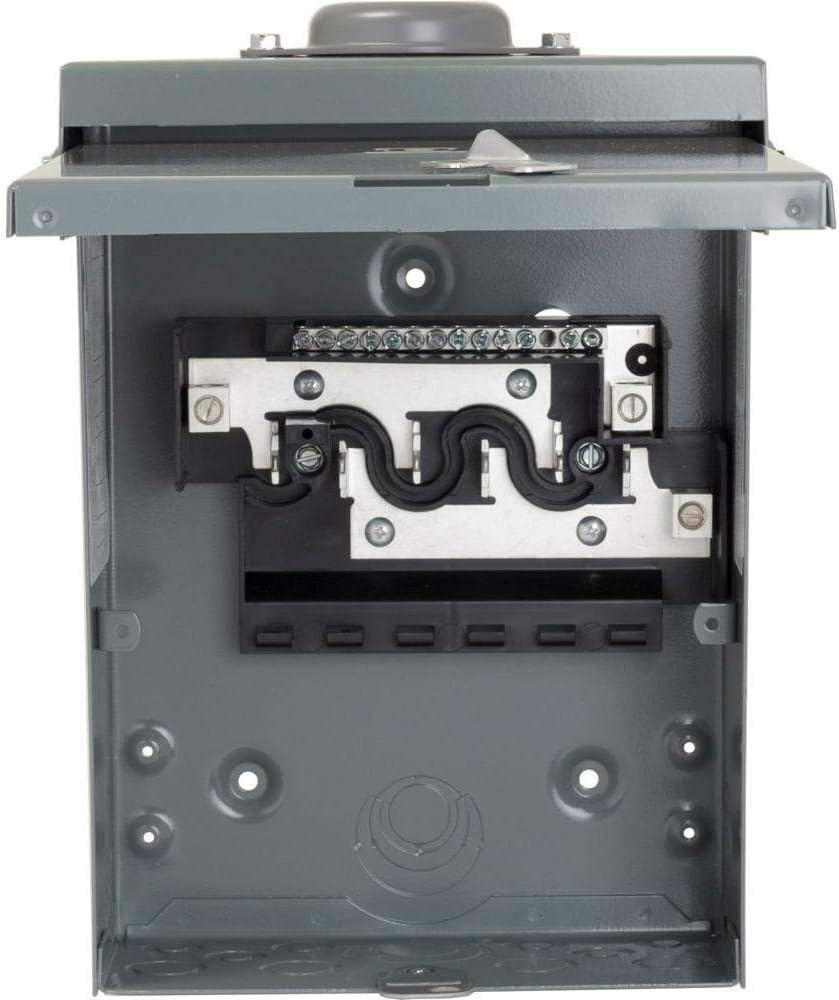

- INSTALLATION AND CONNECTIONS: Breaker box cover for surface mounting; Electrical connections are main lugs that accept a range of 6 AWG to 2/0 AWG copper or 6 AWG to 2/0 AWG aluminum wire
- SPECIFICATIONS: Measures 8.88 in x 3.75 in x 12.57 in; Features 22 kA breaking capacity with 120/240 VAC rating; 6 spaces in a NEMA 3R (Outdoor) enclosure; Supports a total of 12 circuits with the use of tandem breakers to maximize flexibility; UL Listed
| UPC | 047569071256 |
|---|---|
| Brand Name | Schneider Electric |
| Phase Type | Single Phase |
| Unit Count | 1.0 Count |
| Item Weight | 9.6 Pounds |
| Manufacturer | Square D by Schneider Electric |
| Material Type | Plastic |
| Item Type Name | Homeline 100 Amp 6-Space 12-Circuit Outdoor Main L |
| Maximum Current | 100 Amps |
| Number Of Circuits | 12 |
| Included Components | Circuit Tester |
| Warranty Description | Warranty |
| Item Dimensions L x W x H | 10.5"L x 14.5"W x 4.68"H |
| Global Trade Identification Number | 00047569071256 |
