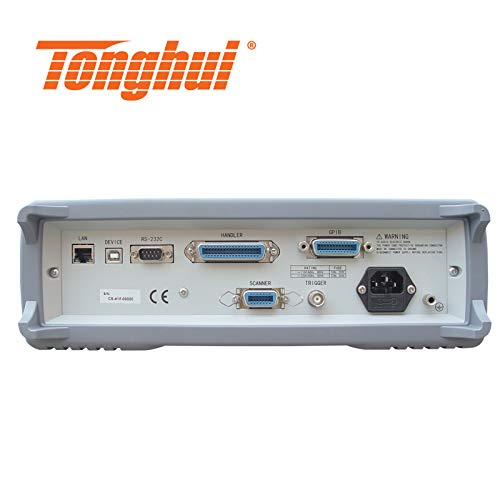

TH2638 Precision Capacitance Meter, 100Hz,120Hz, 1kHz,10kHz,100kHz,1MHz, 1MHz±1%,1MHz±2%
Product details
| Management number | 210911622 | Release Date | 2026/04/04 | List Price | $4,720.00 | Model Number | 210911622 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features ■ 4.3 inch TFT LCD display ■ Selectable Chinese and English operation interface ■ Max. test frequency: 1MHz ■ Highest test speed: 2.3ms/time ■ Basic test accuracy : ±0.07% ■ Loss factor: ±0.0005 ■ V, I test signal level monitor function ■ Low impedance measurement, signal level compensation function ■ Built-in 11-bin comparator ■ Internal file storage and external U disk file storage ■ Test data can be directly saved in U disk ■ Screen shot can be saved in U disk ■ Compatible with SCPI commands ■ RS232C, USB CDC, LAN, HANDLER, GPIB interfaces ■ Manipulator interface and scanner interface ■ Contact inspection function ■ Synchronizing signal source ■ Offset function in 1MHz test frequency (±1, ±2%)
- Precision Capacitance Meter
| Brand Name | Tonghui |
|---|---|
| Manufacturer | Tonghui |
| Power Source | Battery Powered |
