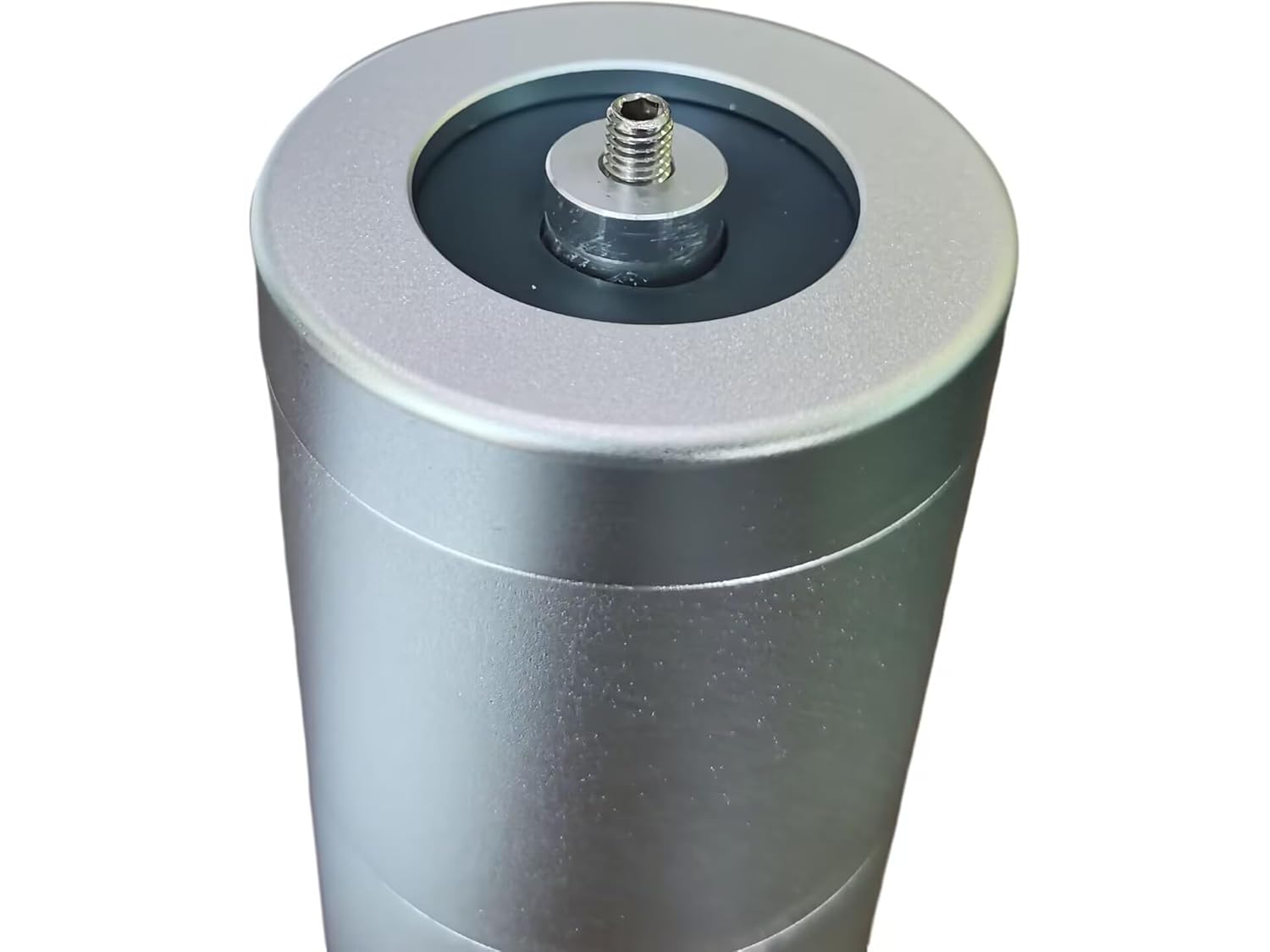

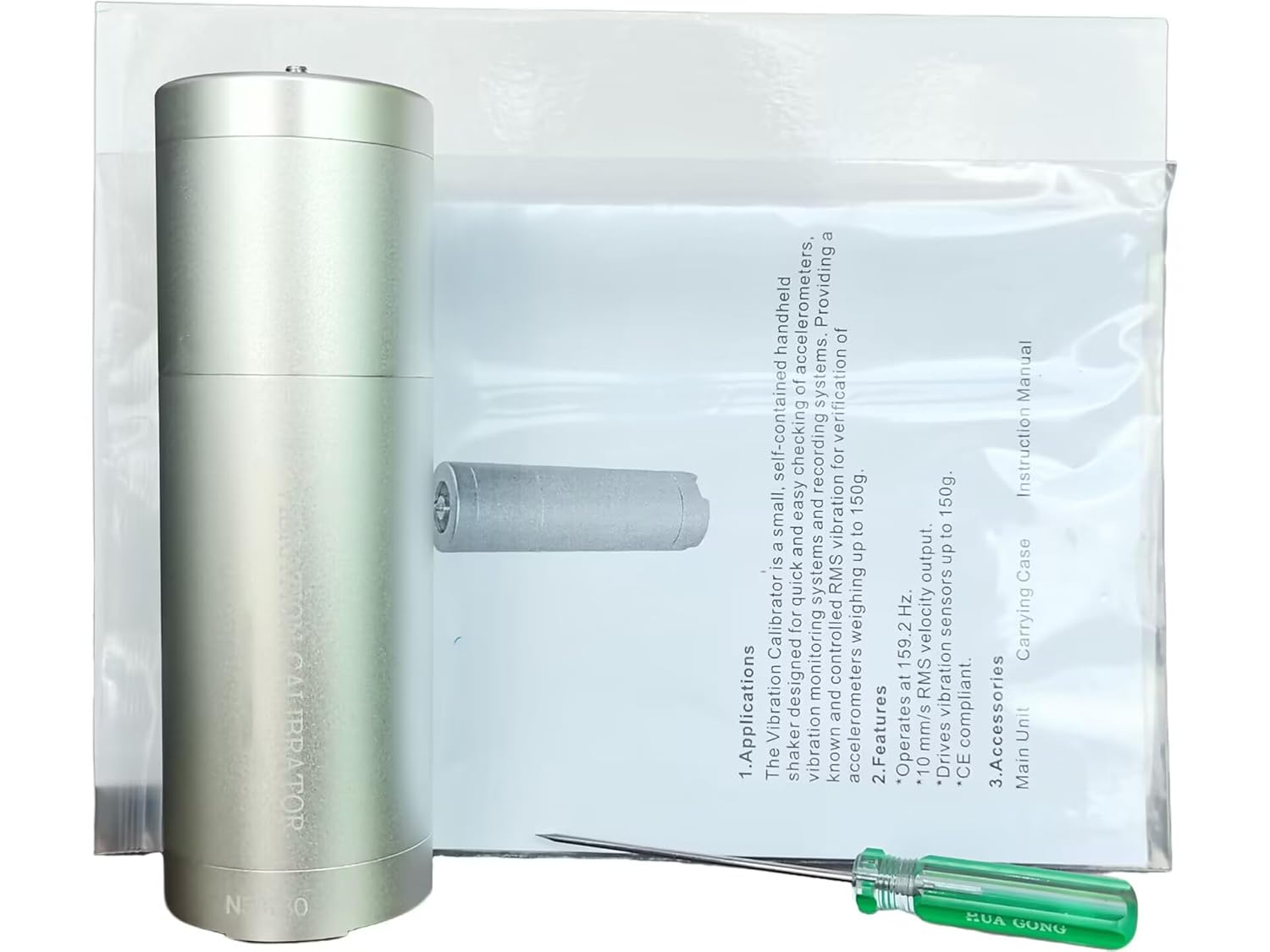

Vibration Calibrator for Vibration Meter Handheld Vibration Calibrator Meter
Product details
| Management number | 211149858 | Release Date | 2026/04/04 | List Price | $218.00 | Model Number | 211149858 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Applications The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy checking of accelerometers, vibration monitoring systems and recording systems. Providing a known and controlled RMS vibration for verification of accelerometers weighing up to 150g. Technical Specifications * Operating Frequency: 159.2Hz ± 0.5% * Acceleration Output: 10 m/s² ( RMS ) ± 3% * Velocity Output: 10 mm/s ( RMS ) ± 3% * Displacement Output: 10 um ( RMS) ± 4% * Transverse Output: <5% * Distortion: <3% * Maximum Load: 150g * Operating Temperature: -10°C~40°C * Operating Humidity: 85% RH ( non-condensing ) * Ramp-Up Time: <3 sec * Internal Battery: 1x9V 6F22（Battery not included in the package） * Size :(Diameter x Height) 56mm x 200mm * Weight: (with batteries) 900g * Accessories: Main Unit, Carrying Case, Instruction Manual
- ★ Simple structure and convenient carrying
- ★ Operates at 159.2 Hz.
- ★ 10 mm/s RMS velocity output.
- ★ Drives vibration sensors up to 150g.
- ★ CE compliant.
| Item Weight | 4.41 pounds |
|---|---|
| Manufacturer | VTSYIQI |
| Product Dimensions | 5.91 x 9.84 x 1.97 inches |
| Is Discontinued By Manufacturer | No |
